Inspection camera NileCAM210_CUQRB5 - Sony® Starvis™ IMX462 GMSL2

digitalfull HDfixed

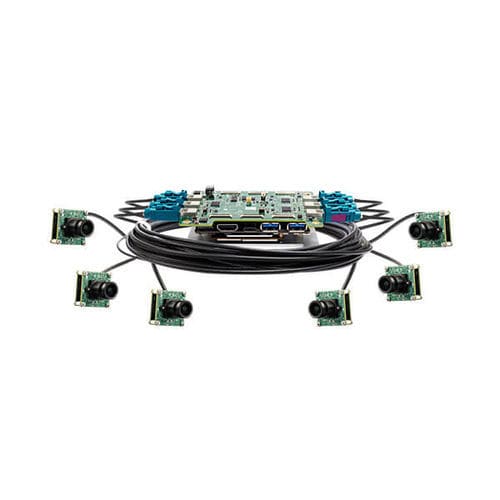

Houses NileCAM210 - 2MP Sony Starvis IMX462 Camera Module Ultra low light sensitivity Plugs into Qualcomm® Robotics RB5 Development Kit Gigabit Multimedia Serial Link 2 (GMSL2) interface with FAKRA connector Shielded coaxial cable to transmit power and data up to 15m Optional IP67-rated enclosure NileCAM210_CUQRB5 is a 2 MP GMSL camera for Qualcomm® Robotics RB5 development kit. It is based on a 1/2.8" Sony® STARVIS IMX462 image sensor which helps in producing excellent images even in low light conditions. This multi-camera solution supports up to six camera modules with the Qualcomm® Robotics RB5 development kit and is capable of streaming Full HD @ 30fps. Key features: Frame Rate: Streams Full HD @ 30fps Refer pdfDatasheet for complete frame rate details. Uses Qualcomm QRB5165 ISP for image processing S-mount lens holder for flexibility to choose a lens as per application requirements Lightweight, versatile, and portable design Interface: Interface: GMSL2 Connector: FAKRA connector Cable Length: 3m/15m Sensor features: Sensor: IMX462 sensor from SONY® Starvis Focus Type: Fixed focus Chroma: Color Shutter Type: Electronic Rolling Shutter Optical Format: 1/ 2.8" Output Format: RAW 10/12-bit Pixel Size: 2.9 μm x 2.9 μm Sensor Active Area: 1945H x 1097V Array Size: 1945H x 1109V Holder: S-Mount FOV: TBD Electrical & Mechanical: Operating Voltage: 5 to 15V with +/- 5% tolerance Operating Temperature Range: -30°C to 70°C Typical power consumption: TBD Size in mm (l x b): serializer board - 30 x 30 mm
