Medical camera e-CAM22_CURZH - Sony® STARVIS™ IMX462

digitalfull HDCMOS

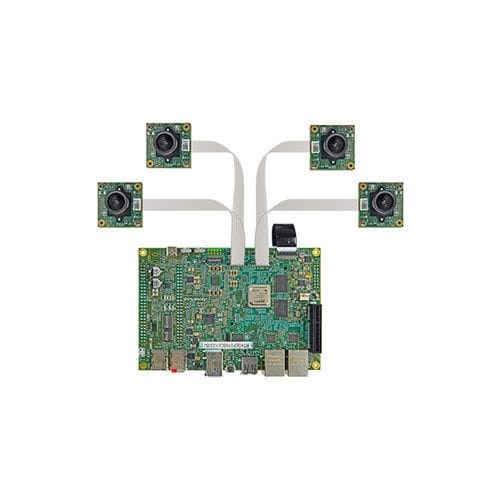

Houses Full HD Sony Starvis™ Camera Module with S-mount lens holder Plugs directly into the Renesas RZ/V2H & RZ/V2N development kit On-board high performance ISP Multicamera support for RZ/V2H & RZ/V2N Overview e-CAM22_CURZH is a Full HD custom lens camera module based on 1/2.8" Sony Starvis IMX462 CMOS image sensor. It is a color camera that supports UYVY image format and is provided with S-mount (also known as M12 board lens) lens holder. e-CAM22_CURZH can be interfaced to any one of the connectors (CN7 to CN10) of the Renesas RZ/V2H & RZ/V2N development kit. e-CAM22_CURZH stands out in its superior near-infrared performance. The high sensitivity of this camera helps to capture images in extremely low lighting conditions as 0 lux, which makes it suitable for night vision applications and medical microscopes. Key features: Frame Rate: Frame Rate: Streams HD @ 60 fps & Full HD @ 60 fps Refer pdfDatasheet for more details. Output format: Uncompressed UYVY streaming High speed 4-lane MIPI CSI-2 interface Standard M12 lens holder for use with customized optics or lenses for various applications Lightweight, versatile, and portable design Interface: Interface: 4-Lane MIPI CSI-2 Connector: 22pin FPC connector Cable length: 15cm Module features: Sensor: IMX462 from Sony® Starvis Focus Type: Fixed focus Sensor Resolution: Full HD Chroma: Color Optical Format: 1/ 2.8" Output Format: Uncompressed UYVY Pixel Size: : 2.9 μm x 2.9 μm Sensor Active Area: 1920H x 1080V G Sensitivity: 2376mV for HCG mode; 921mV for LCG mode Holder: M12 (S-Mount) FOV: 132°(D), 113°(H), 61°(V) (with the lens provided by e-con)
