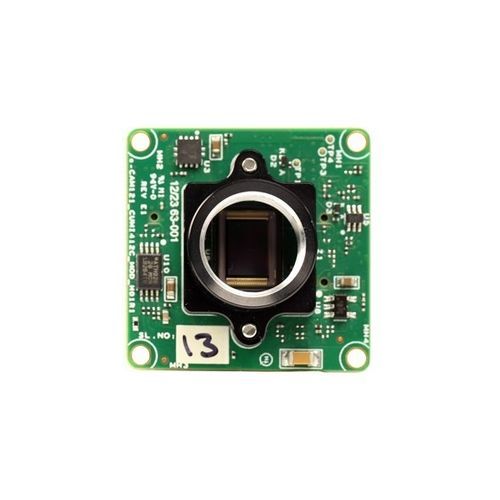

Monitoring camera module e-CAM121_CUMI412C_MOD - Sony® Starvis™ IMX412

diagnosticdigitalCMOS

e-CAM121_CUMI412C_MOD is a 12MP MIPI CSI-2 ultra-low light camera module based on the Sony® Starvis™ IMX412 back-illuminated and stacked CMOS image sensor. The 12MP camera module is capable of streaming high frame rate of 12MP@60 fps and 4K@60fps. This IMX412 camera module features a high frame rate of 12MP@60 fps, 4K@60fps, a small pixel size of 1.55µm, a peak QE of 70% at 550nm, and 30% at 840nm, and superior low light performance.It is ideal for a variety of applications, including in-vitro diagnostic (IVD) devices, automated microscopy, fluorescence imaging, autonomous mobile robots, UAVs, smart city, smart surveillance and traffic monitoring systems. 12MP Sony® Starvis™ camera with MIPI CSI-2 interface 1/2.3" Optical Form-factor RGB RAW 12-bit / 10 bit data per pixel Plugs into NVIDIA Jetson ORIN NX / ORIN Nano / Jetson AGX Orin development kits S-mount interchangeable lens holder for flexibility to choose a lens as per application requirements Utilizes NVIDIA® Jetson's ISP for automatic exposure and White balance controls and other image processing pipelineFrame Rate: 12MP@60fps, 4K@60fps, Full HD@240 fps (Linear Mode) Operating Temperature Range: -20°C to 60°C Power consumption: 567.6mW Small form-factor board size in mm (l x b): 30mm x 30mm (Height depends on the Lens) Compliance RoHS
