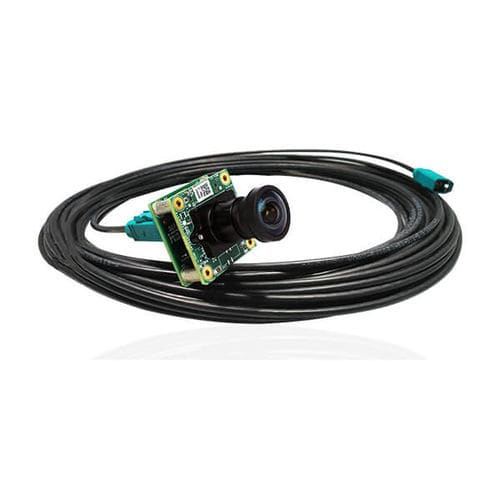

Ophthalmology camera NileCAM200

digital20 Mpxfixed

Houses 20 MP Camera based on onsemi® AR2020 sensor GRR - Reduces the rolling shutter artifacts # GMSL2™ interface to transmit power and data up to 15m Optional IP67-rated enclosure Overview NileCAM200 is a 20 MP GMSL2™ camera module with an AR2020 sensor from onsemi®, delivering outstanding image quality - with its fixed focus capability and high resolution. With a small pixel size of 1.4 μm, stacked BSI technology, and enhanced NIR performance, the NileCAM200 is suited for various applications, including Drones, Autonomous Sports Broadcasting & Analytics, Fundus Imaging, Digital Microscope - WSI, In-vitro Diagnostics, OCR, Inventory Scanning, Digital Twin. The camera module also has an IP-rated (IP67) enclosure and cables, ensuring reliability even in challenging environments. Key features: Standard M12 lens holder for use with customized optics or lenses for various applications Lightweight, versatile, and portable design Interface: Interface: GMSL2™ Connector: FAKRA connector Cable Length: 15m Sensor features: Sensor: AR2020 from onsemi® Focus Type: Fixed focus Chroma: Color Shutter Type: Electronic Rolling Shutter with global reset mode # Optical Format: 1/1.8" Output Format: RAW Bayer Pixel Size: 1.4μm x 1.4μm Sensor Active Area: 5120 (H) x 3840 (V) Holder: M12 (S-Mount) FOV: 118.81°(D), 90.28°(H), 65.98°(V) (with the lens provided by e-con) Electrical & Mechanical: Operating Voltage: 5 to 15V +/- 5% tolerance Operating Temperature Range: -30°C to 70°C Typical power consumption: TBD Size in mm (l x b): 30 x 30 mm Miscellaneous: Compliance: RoHS
