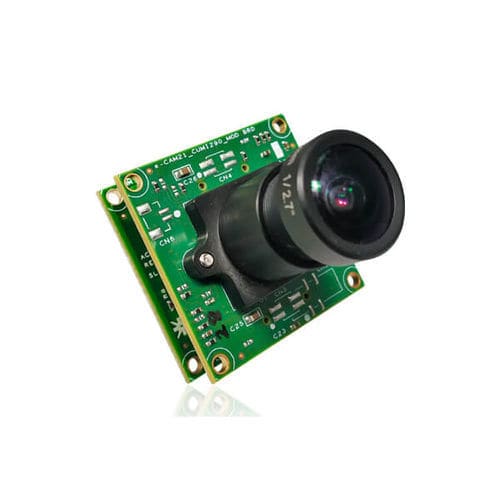

Medical camera e-CAM22_CUONX - Sony® STARVIS™ IMX462

digitalfull HDCMOS

Houses e-CAM221_CUMI462_MOD - Full HD Sony Starvis™ Camera Module with S-mount lens holder High-speed MIPI CSI-2 interface to connect with the CPU Plugs in to NVIDIA® Jetson Orin NX / Orin Nano Developer Kit Uses NVIDIA® Internal Image Signal Processor (ISP) for image processing e-CAM22_CUONX is a Full HD ultra-lowlight MIPI camera for NVIDIA® Jetson ORIN NX / ORIN Nano developer kit. This ultra-low light camera is based on the SONY STARVIS™ IMX462 color CMOS image sensor and it can be directly connected with the NVIDIA® Jetson ORIN NX / ORIN Nano developer kit. e-CAM22_CUONX stands out in its superior near-infrared performance. The high sensitivity of this camera helps to capture images in extremely low lighting conditions as 0 lux, which makes it suitable for night vision applications and medical microscopes. Key features: Frame Rate: Refer pdfDatasheet for complete frame rate details. Standard M12 lens holder for use with customized optics or lenses for various applications Lightweight, versatile, and portable design Interface: Connector: FPC flex cable Cable Length: 30cm Sensor features: Sensor: IMX462 from Sony® Starvis Focus Type: Fixed focus Sensor Resolution: Full HD Chroma: Color Shutter Type: Electronic Rolling Shutter Optical Format: 1/2.8" Output Format: RAW 12 bit Pixel Size: 2.9μm x 2.9μm Sensor Active 1937H x 1097V Array Size: 1937H x 1097V Holder: M12 (S-Mount) DFOV: 121.35° (with the lens provided by e-con) Electrical & Mechanical: Operating Voltage: 3.3V +/- 5% Operating Temperature Range: -30°C to +70°C Typical power consumption: TBD Size in mm (l x b x h): 30mm x 30mm Miscellaneous: Compliance: RoHS
