Medical camera e-CAM21_CURZ - Sony® STARVIS™ IMX462

digitalfull HDCMOS

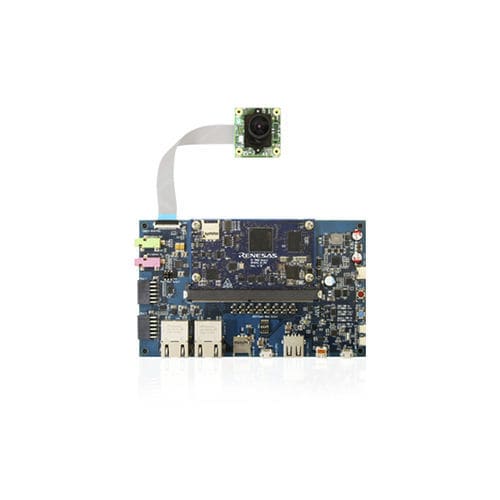

Houses - Full HD Sony® Starvis™ Camera Module with S-mount lens holder Ultra low light performance Plugs directly into the Renesas RZ/V2L development kit On-board high performance ISP e-CAM21_CURZ is a Full HD custom lens camera module based on 1/2.8" Sony Starvis IMX462 CMOS image sensor. It is a color camera which supports UYVY image format and provided with S-mount (also known as M12 board lens) lens holder. e-CAM21_CURZ can be interfaced to the CN1 connector of the Renesas RZ/V2L development kit. e-CAM21_CURZ stands out in its superior near-infrared performance. The high sensitivity of this camera helps to capture images in as extreme low lighting conditions as 0 lux, which makes it suitable for night vision applications and medical microscopes. Key features: Frame Rate: Streams HD at 60 fps, FHD at 60 fps Refer pdfDatasheet for more details. Output format: Uncompressed UYVY format High speed 4-lane MIPI CSI-2 interface Standard M12 lens holder for use with customized optics or lenses for various applications Lightweight, versatile, and portable design Interface: Interface: 4-Lane MIPI CSI-2 Connector: 24pin FPC connector Cable length: 30cm Module features: Sensor: IMX462 from ony® Starvis™ Focus Type: Fixed focus Sensor Resolution: Full HD Chroma: Color Shutter Type: Rolling Shutter Optical Format: 1/2.8" Output Format: Uncompressed UYVY Pixel Size: 2.9μm x 2.9μm Sensor Active Area: : 1920H x 1080V Array Size: : 1920H x 1080V G Sensitivity: 2376mV for HCG mode; 921mV for LCG mode Holder: M12 (S-Mount) DFOV: 132°(D), 113°(H), 61°(V) (with the lens provided by e-con) Electrical and Mechanical: Operating Voltage: 3.3V with +/- 5%
