Operating room display SP1-324K

ORsurgical4K UHD

Product overview

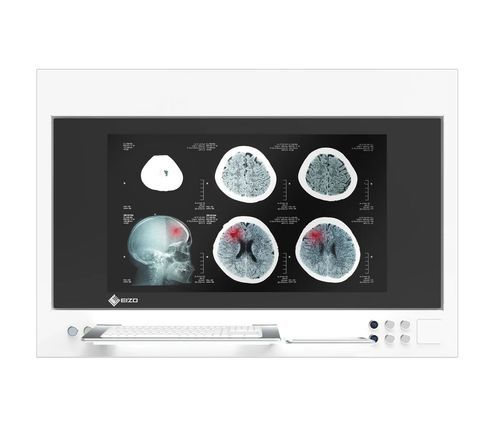

The CuratOR Surgical Panel SP1-324K is a 32" integrated OR display with built-in IT and video management components. Designed for operating-room environments, it provides high-resolution DICOM‑preset imaging and integrates into hospital IT infrastructures to support surgical workflows and remote viewing within the OR.

Key features

• Space-saving wall or flush mounting
• Hinged front with tool-free locking for fast maintenance
• Customizable housing dimensions and RAL color selection
• Multiple monitor diagonal options; 32" UHD (3840×2160) standard
• Optional projected capacitive multi-touch for glove operation (SP1-324KT)
• Modular interior supporting VMbasic video management (signal/layout switching)
• Front USB Type-A ports as standard; optional additional front interfaces
• Flat, sealable front for secure cleaning and disinfection
• Designed for surface or flush-mounted installation

Product Features (detailed)

• Optimized display via one-button LUT switching: five predefined lookup tables for medical images and video.
• Monitor flexibility: range of screen diagonals and optional combination with a 24" Full HD HIS workstation for space-efficient viewing.
• Custom housing: adaptable dimensions and selectable RAL colors to match site requirements.
• Intuitive touch operation: optional projected capacitive touchscreen allows glove operation and direct control of OR software.
• VMbasic video management: supports internal and front-connected signals, layout selection (PiP, PaP, LR, TB, Quadsplit, Single) and input rotation while preserving active layout.
• Connectivity and accessories: front USB Type-A (2.0, 3.0) standard; optional front interfaces can be mapped to video inputs.
• Hygiene and cleaning: flat, sealable front integrated into OR wall for straightforward disinfection procedures.
• Serviceability: hinged front and unique locking system enable quick access without screws or complex disassembly.

Model variants & certification notes

• Variants: SP1-324K (without touchscreen), SP1-324KT (with touchscreen)
• Certifications/standards: CE, UKCA, IEC/EN 62368-1, IEC/EN 60601-1, IEC/EN 60601-1-2, RoHS, WEEE (refer to manufacturer documentation for latest certifications)

Technical specifications

• Model: SP1-324K (SP1-324KT for touchscreen variant)
• Panel size: 32" (80.0 cm), 16:9
• Native resolution: 3840 × 2160 (UHD)
• Panel type: TFT color LCD with DICOM® preset
• Display colors: 1.07 billion
• Pixel pitch (H x V): 0.182 mm × 0.182 mm
• Brightness (typical): 450 cd/m²
• Contrast ratio (typical): 1300:1
• Viewing angles (H / V, typical): 178° / 178°
• Response time (typical): 14 ms (Gray-to-Gray)
• Backlight: LED
• Touchscreen (option SP1-324KT): projected capacitive, multi-touch
• IT components (example, expandable): Intel® Core™ i5 3.0 GHz, Intel® chipset, 18 MB cache, 8 GB DDR3, SATA SSD, LAN RJ45 10/100/1000Base-T ×2
• Operating system support: Windows 10 Pro, Windows 11 Pro
• Keyboard/mouse: anti-microbial medical silicone keyboard with integrated mouse storage; silicone mouse IP65
• Front inputs: USB Type-A (2.0, 3.0)
• Optional signal inputs with VMbasic: DisplayPort™, DVI-I Single Link, HDMI® (4K@30Hz), HDMI® (4K@60Hz) ×2
• Front push buttons (standard): main switch, system switch, LUT switch (DICOM normal, DICOM bright, Gamma 1.8, 2.0, 2.2, 2.4)
• VMbasic push buttons (optional): input switch (DisplayPort, DVI-I, HDMI variants), layout switch (PiP, PaP, LR, TB, Quadsplit, Single), rotate inputs while keeping active layout
• Maximum power consumption: 190 W
• Power requirements: 100–240 V / 50–60 Hz / 4–2 A
• Thermal load: 684 kJ/h
• Net weight: 50 kg
• Dimensions (mm): Device (W × H × D): 1050 × 700 × 120; Niche (W × H × D): 1060 × 710 × 140; Masking Frame (W × H): 1080 × 730
• Housing material: powder-coated sheet steel; front: powder-coated stainless steel + anti-reflective safety glass (ESG)
• Color: available in any RAL color
• Mounting options: flush mounting (optional surface mounting); designed for surface or flush-mounted installation
