3840 × 2160 OR video system CuratOR SC431

1080pFull HD4K

Overview

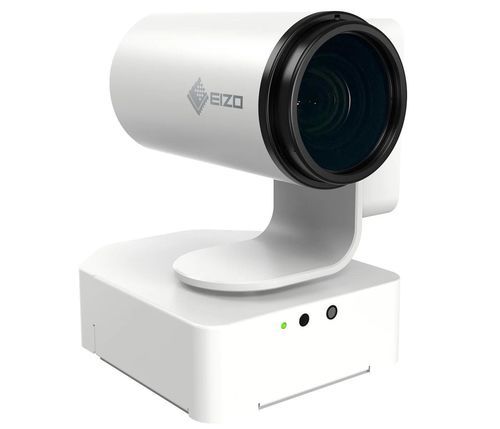

UHD camera system with fully integrated three-axis mount for recording surgical procedures.

Key Features

• 4K Ultra-High Definition capture at 3840 x 2160 with progressive 60 Hz output for smooth, high-definition images
• 30x optical motorized zoom for detailed imaging of small surgical targets
• Neutral Density (ND) filter attached as standard to reduce glare and prevent overexposure
• Integrated triaxial mounting (pan / tilt / roll) for flexible field-of-view adjustment
• Smooth, intuitive camera movement with intelligent stepping technology that slows movements when zoomed in for precise control
• Image Shake Stabilizer to reduce micro-vibrations and jitter during zooming
• High-quality imaging functions: Knee (reduces halation), Black Stretch (enhances dark areas), Noise Reduction, and 10-bit color output for smooth tone gradations
• One-cable connection between Camera Head and CCU delivering video, audio and power; available cable lengths: 5 m, 25 m, 35 m (optional extension adapter supports concatenation)
• Built-in microphone in the camera head for synchronized audio output; microphone toggle via CCU
• Versatile connectivity on the CCU: 12G-SDI and HDMI for 4K output, 3G-SDI and HDMI for Full HD; ability to output all signals simultaneously
• Supports remote control via LAN, RS-232C, or included IR remote; front-panel controls on CCU for zoom, white balance and mount

Representative Technical Tables (selected rows)
Camera Head - core data
Image Sensor: 1/2.8 type CMOS, single chip type
Effective Pixels: 3840 x 2160
Zoom: Optical 30x motorized zoom
Focal Length (f=): 4.5 (W) - 135 mm (T)
Horizontal Field of View (HFOV): 62.3° (W) - 2.5° (T)
Minimum Object Distance (MOD): 100 mm (W) - 700 mm (T)
Filter Diameter: 72 mm
Focus Control: Auto, Manual
Iris Control: Auto, Manual
Pan Range: +/- 170°
Tilt Range: +90° to -30°
Roll Range: +/- 200°
Pan Speed: 8.6 - 0.05°/s (7 steps)
Tilt Speed: 8.6 - 0.05°/s (7 steps)
Roll Speed: 30 - 0.2°/s (7 steps)
Built-in microphone: Yes

Features & Functions (selected)
Image Control: Exposure Mode, Metering Area, YUV Color Matrix, White Balance, Sharpness
Gain: Auto, Manual (0 - 51 dB)
Shutter Speed: [59.94 Hz output] 1/60 - 1/10000; [50 Hz output] 1/50 - 1/10000
Picture Flip: Normal, Flip

Interfaces (selected)
Image Output Terminal: 4K: HDMI, BNC (12G-SDI); 2K: HDMI, BNC (3G-SDI)
Video Output: 4K (HDMI/SDI): 2160/59.94p, 2160/50p; 2K (HDMI/SDI): 1080/59.94p, 1080/59.94i, 1080/50p, 1080/50i
Audio Output: HDMI, SDI, mini jack
Remote Control: LAN, RS-232C, IR remote

Miscellaneous / Environmental
Certifications & Standards: CE / UKCA, CB, cTUVus, IEC60601-1, VCCI-A, FCC-A, CAN ICES (A), RoHS, WEEE
Supplied Accessories: AC adapter, AC power cord (2 m), IR remote control, rubber feet x 4, cable cover, Instructions for Use, Quick Reference Guide
Warranty: 2 Years

System and Operational Highlights

• Supports simultaneous 4K and Full HD preview/recording to accommodate mixed-device environments

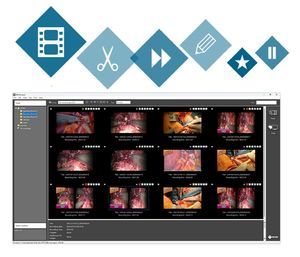

• System examples include 4K capture/recording/display/management and recording to NAS using compatible recorders
• Precise pan/tilt/roll control and reduced field-of-view shift at high zoom via stepping technology

Caractéristiques / spécifications techniques

• Model: CuratOR SC431
• Brand: EIZO
• Resolution: 4K UHD (3840 x 2160)
• Frame rate: 60p (progressive) and 50p variants supported
• Optical zoom: 30x motorized
• Focal length: 4.5 mm (W) – 135 mm (T)
• HFOV: 62.3° (W) – 2.5° (T)
• Minimum object distance: 100 mm (W) – 700 mm (T)
• Filter diameter: 72 mm (ND filter supplied)
• Focus: Auto / Manual
• Iris: Auto / Manual
• Pan range: +/- 170°
• Tilt range: +90° to -30°
• Roll range: +/- 200°
• Pan/Tilt speed: 8.6 - 0.05°/s (7 steps)
• Roll speed: 30 - 0.2°/s (7 steps)
• Image outputs: HDMI and BNC (12G-SDI) for 4K; HDMI and BNC (3G-SDI) for 2K
• Video formats: 2160/59.94p, 2160/50p; 1080/59.94p/i, 1080/50p/i
• Audio outputs: HDMI, SDI, mini jack
• Remote control interfaces: LAN, RS-232C, IR remote
• Power requirements: DC 24 V
• Maximum power consumption: 77 W
• Operating temperature / humidity: Camera Head 0–35 °C / 20–80% (no condensation); CCU 0–40 °C / 20–80% (no condensation)
• Dimensions (W×H×D): Camera Head 161 × 211.5 × 213.7 mm (with cable cover); CCU 220 × 87.5 × 270 mm (without projection and rubber feet)
• Net weight: Camera Head 3.4 kg; CCU 3.0 kg
• Hole spacing: 100 × 100 mm
• Certifications: CE / UKCA, CB, cTUVus, IEC60601-1, VCCI-A, FCC-A, CAN ICES (A), RoHS, WEEE
• Warranty: 2 years
