Data management and storage system CuratOR MIR Browser

visualizationfor medical recordsvideo

Overview

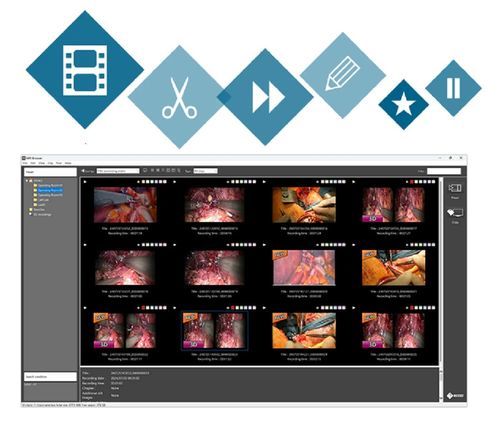

The CuratOR MIR Browser is a desktop software solution for physicians to access, review and manage surgical videos recorded on NAS or external media from office or conference-room PCs. It reads patient metadata entered at recording and provides tools for review, clipping, annotation and privacy masking to support consultation, training and research workflows.

Key functions

• Management and search: organize recordings by patient name, patient ID, recording date and other metadata; add free-text notes to recordings to improve retrieval.
• Playback of recorded medical videos: open videos recorded with EIZO MIR-1 stored on NAS or external media (USB HDD/SSD).
• Dual video display: view simultaneous recordings side-by-side with Picture-by-Picture (PbyP) or Picture-in-Picture (PiP) layouts for comparative review.
• Video clipping and editing: select segments from recordings and save as video clips or still images through an intuitive editing interface.
• Annotation tools: mark regions in video frames with the mouse to highlight findings or points of interest.
• Privacy masking: obscure specified video areas (for example patient name) to protect privacy for educational or presentation use.
• 3D to 2D conversion: display one half of side-by-side or top-and-bottom 3D signals in 2D for playback without a 3D monitor.

Additional product features

• Save clipped segments and still images from individual frames for documentation and teaching.
• Integration with patient metadata recorded with the video to streamline contextual access.
• Annotation and marking support to enhance comprehension during review and training.

Technical specifications

• System Requirements: Compatible OS: Windows 11; Windows 10 (64-bit). CPU: Intel Core — 10th generation (Comet Lake) or later. Memory: 8 GB minimum. Display resolution: 1920 x 1080 minimum.
• Languages: English, Japanese.
• Supported Video Format (loading): H.265, H.264. Supported containers for loading: TS, MP4 with audio codecs MPEG Audio Layer 2 or AAC.
• Still Image (loading): JPEG, TIFF.
• File Format for Output (video): H.265: MPEG Audio Layer 2, AAC (containers: TS, MP4) — supports Intel Quick Sync Video (QSV) and NVIDIA NVENC. H.264: MPEG Audio Layer 2, AAC (containers: TS, MP4) — supports Intel Quick Sync Video (QSV), NVIDIA NVENC and software encoding.
• File Format for Output (still image): JPEG, TIFF, PNG.
