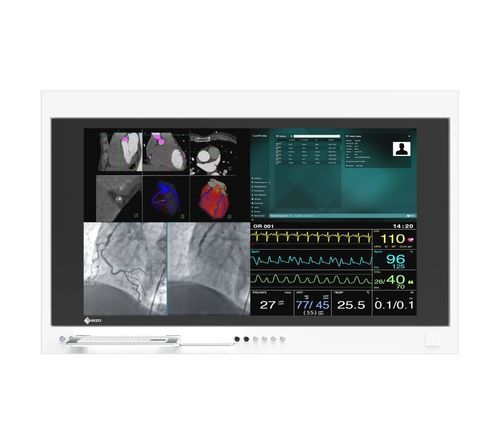

Surgical display CuratOR SP1-654K

operating room4K UHD4K

Product overview
The CuratOR Surgical Panel SP1-654K is a wall-mounted digital image viewing system integrating a 65" monitor with built-in IT and video management components. Designed specifically for the operating room, it integrates with hospital IT infrastructures, supports surgical workflows and delivers consistent image quality and remote viewing capabilities for OR teams.

Key benefits

• Space-saving flush wall mounting for a clean OR installation
• Easy service access with hinged front and unique locking system — no screws required
• Customizable housing, materials and accessories; finish selectable from the RAL palette

Product features
Optimized view through simple LUT switching
Every 4K Surgical Panel includes an easy-access LUT switch. Operators can choose one of five predefined lookup tables at the push of a button to display medical images and video with optimal settings.

Wide-ranging monitor options
The Surgical Panel is available in multiple screen sizes to match local application requirements. Optionally combine the viewing unit with a 24" Full HD HIS workstation to provide a complete viewing environment while saving space.

Customized housing
Housing dimensions and front finishes can be adapted to the operating room; color selectable from the RAL palette to match local standards.

Intuitive touch operation
Optional projected-capacitive multi-touch provides intuitive control. Touch operation is compatible with gloves for sterile use in the OR (SP1-654KT variant).

Flexible integrated video management (VMbasic)
Modular interior allows customer-specific configurations. Optionally equip the panel with VMbasic to switch between internal or front-access video signals; front buttons can recall preset layouts and rotate inputs while preserving the active layout.

Accessories and connectivity
Front USB ports are standard for peripheral devices. Additional front-frame interfaces can be integrated and mapped to video management inputs as required.

Easy cleaning
Flat, sealed front surface designed for full integration into the OR wall for straightforward cleaning and disinfection. Intelligent heat distribution minimizes the need for specialized ventilation.

Easy maintenance and service
Hinged front enables tool-free access for maintenance; unique locking mechanism eliminates the need to unscrew components, simplifying on-site servicing.

Technical specifications

• Model variations: SP1-654K (without touchscreen), SP1-654KT (with touchscreen)
• Certifications & standards: CE, UKCA, IEC/EN 62368-1, IEC/EN 60601-1, IEC/EN 60601-1-2, RoHS, WEEE
• Housing material: Powder-coated sheet steel
• Front: Powder-coated stainless steel combined with anti-reflective safety glass (ESG)
• Color: Available in any RAL color
• Mounting options: Flush mounting (optional surface mounting)
• Panel size: 65" (163.9 cm, 16:9)
• Panel type: TFT color LCD panel with DICOM® preset
• Native resolution: 3840 × 2160 (UHD)
• Display colors: 1.07 billion colors
• Pixel pitch (H x V): 0.372 mm x 0.372 mm
• Brightness (typical): 500 cd/m²
• Contrast ratio (typical): 1100:1
• Viewing angles (H / V, typical): 178°, 178°
• Response time (typical): 8.0 ms (Gray-to-Gray)
• Backlight: LED
• Touchscreen: Projected capacitive, multi-touch (SP1-654KT only)
• IT components (example expandable spec): INTEL® Core™ i5 - 3.0 GHz, INTEL® chipset, 18 MB cache, 8 GB DDR3 RAM, SATA SSD, LAN RJ45 10/100/1000Base-T x 2
• Operating system: Windows 10 Pro, Windows 11 Pro
• Keyboard / mouse: Anti-microbial medical silicone keyboard with integrated mouse storage (foldable), silicone mouse (visual 5 keys, laser mouse / IP65, 1x USB)
• Front-side inputs - USB: USB Type-A 2.0, 3.0
• Signal inputs (optional with VMbasic): DisplayPort™, DVI-I Single Link, HDMI® (4K@30Hz), HDMI® (4K@60Hz) x 2
• Front push buttons (standard): Main switch, system switch, LUT switch (DICOM normal, DICOM bright, Gamma 1.8, 2.0, 2.2, 2.4)
• VMbasic (optional) controls: Signal input switch (DisplayPort, DVI-I, HDMI), layout switch (PiP, PaP, LR, TB, Quadsplit, Single), rotate signal inputs with active layout
• Maximum power consumption: 287.0 W
• Power requirements: 100 - 240 V / 50 - 60 Hz / 4 - 2 A
• Thermal load: 1033.2 kJ/h
• Net weight: 90 kg
• Dimensions (mm): Device (W x H x D): 1800 x 1300 x 120; Niche (W x H x D): 1810 x 1310 x 140; Masking frame (W x H): 1830 x 1330
