Surgical display CuratOR SP1-494K

operating roomOR4K UHD

Overview

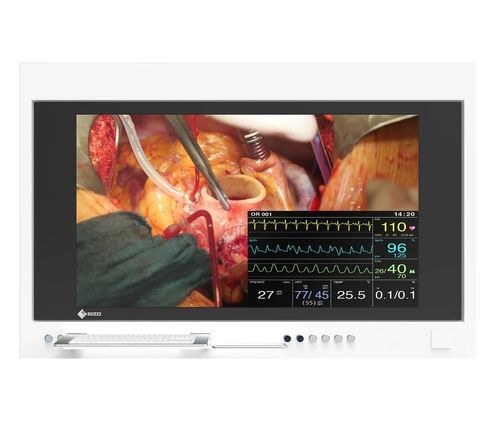

The CuratOR Surgical Panel SP1-494K is a wall-mounted digital viewing station for the operating room integrating a 49" 4K UHD monitor with medical DICOM preset, built-in IT components and optional video management. Designed for integration into hospital IT infrastructures, it delivers a clear, configurable display for surgical imaging and intraoperative workflows.

Key features

• Wall mounting for flush or surface installation to save space in the OR.
• Integrated 49" 4K UHD panel with DICOM preset and LUT switching (5 presets) for optimized image presentation.
• Optional projected-capacitive touchscreen suitable for glove use in sterile fields (model SP1-494KT).
• Modular internal layout for customised hardware and optional VMbasic video management.
• Front USB Type-A ports standard; optional front-frame interfaces for peripheral connectivity.
• Sealed flat front (stainless steel + anti-reflective safety glass) for straightforward cleaning and disinfection.
• Hinged front with tool-free locking system for simplified maintenance access.

Miscellaneous (from product information)
Model variations: SP1-494K (without touchscreen); SP1-494KT (with touchscreen).
Certifications & standards: CE, UKCA, IEC/EN 62368-1, IEC/EN 60601-1, IEC/EN 60601-1-2, RoHS, WEEE.

Housing

• Material: Powder-coated sheet steel housing.
• Front: Powder-coated stainless steel combined with anti-reflective safety glass (ESG).
• Colour: Customisable in any RAL colour.
• Mounting: Flush mounting standard; surface mounting optional.

Panel

• Size: 49" (123.2 cm), 16:9 aspect ratio.
• Type: TFT colour LCD with DICOM preset.
• Native resolution: 3840 × 2160 (UHD).
• Brightness: 700 cd/m²; Contrast ratio: 1100:1; Display colours: 1.07 billion.
• Pixel pitch: 0.280 mm × 0.280 mm; Viewing angles: 178° / 178°; Response time: 8 ms (Gray-to-Gray).

Hardware & software components

• CPU: Intel Core i5 3.0 GHz; RAM: 8 GB DDR3; Storage: SATA SSD; Dual Gigabit LAN.
• OS: Windows 10 Pro or Windows 11 Pro.
• Input devices: Anti-microbial medical silicone keyboard with integrated foldable mouse storage; silicone mouse (IP65).

Inputs (front side)

• USB: Front USB Type-A 2.0 and 3.0.
• Optional signal inputs (with VMbasic): DisplayPort, DVI-I Single Link, HDMI 4K@30Hz, HDMI 4K@60Hz ×2.

Push buttons (front side)

• Standard: Main switch, system switch, LUT switch (DICOM normal, DICOM bright, Gamma 1.8/2.0/2.2/2.4).
• With VMbasic: Signal input switch, layout switch (PiP, PaP, LR, TB, Quadsplit, Single), rotate active inputs.

Power

• Maximum power consumption: 265 W.
• Power requirements: 100–240 V, 50/60 Hz.
• Thermal load: 954 kJ/h.

Physical specifications

• Net weight: 80 kg.
• Device dimensions (W×H×D): 1400 × 900 × 120 mm.
• Niche dimensions (W×H×D): 1410 × 910 × 140 mm; Masking frame (W×H): 1430 × 930 mm.

Accessories and connectivity
Front USB ports are standard for peripherals. Optional front-frame interfaces can be integrated and mapped to video management inputs for customised connectivity.

Technical specifications (summary)

• Product: CuratOR Surgical Panel SP1-494K — wall-mounted OR viewing station.
• Display: 49" 4K UHD (3840×2160), 700 cd/m², 1100:1, DICOM preset.
• Options: Touchscreen (SP1-494KT), VMbasic video management, housing colour and dimension customisation.
