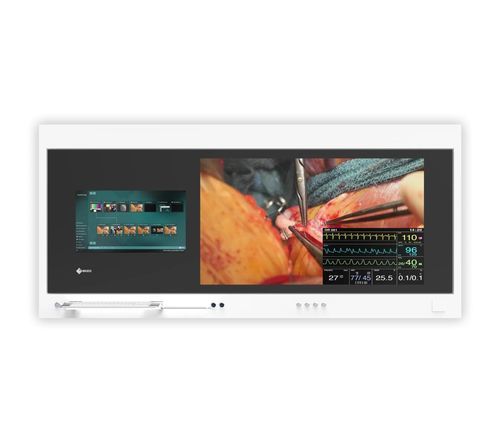

Operating room display CuratOR Surgical Panel SP2-24-494K

surgicalfull HD1920 x 1080

Overview
The CuratOR Surgical Panel SP2-24-494K is a wall-mounted digital image viewing and workstation combination for use in the operating theatre. It integrates monitoring, video management and optional IT components into the hospital infrastructure to support surgical workflows and image review.

Key features

• Space-saving wall mounting or flush installation
• Hinged front with tool-free locking for service access
• Customizable housing color (RAL palette) and accessory options
• Dual-display configuration: 24" Full HD primary panel + 49" UHD secondary with DICOM preset
• Optional projected-capacitive multi-touch (glove operable)
• Easy LUT switching (five predefined lookup tables)
• Optional integrated video management (VMbasic): front/internal signal switching, presets, input rotation
• Front USB ports standard; optional front-frame interfaces mapped to video inputs
• Sealable flat front for cleaning and disinfection; passive heat distribution, no special ventilation required

Model variations & certifications
Model variants: SP2-24-494K (no touchscreen); SP2-24T-494K (24" touchscreen); SP2-24-494KT (49" touchscreen); SP2-24T-494KT (24" + 49" touch).
Certifications: CE, UKCA, IEC/EN 62368-1, IEC/EN 60601-1, IEC/EN 60601-1-2, RoHS, WEEE

Housing

• Material: Powder-coated sheet steel
• Front: Powder-coated stainless steel + anti-reflective safety glass (ESG)
• Color: Any RAL color available
• Mounting: Flush or surface-mounted installation

Panel (primary)

• Size: 24" (60.5 cm), 16:9
• Type: Color TFT LCD
• Resolution: 1920 × 1080 (Full HD)
• Colors: 16.77 million
• Brightness: 350 cd/m² (typical)
• Contrast ratio: 1000:1 (typical)
• Viewing angles: 178° / 178°
• Response time: 14 ms G-to-G
• Backlight: LED

Panel (secondary)

• Size: 49" (123.2 cm), 16:9
• Type: Color TFT LCD (IPS) with DICOM preset
• Resolution: 3840 × 2160 (UHD)
• Colors: 1.07 billion
• Brightness: 700 cd/m² (typical)
• Contrast ratio: 1100:1 (typical)
• Viewing angles: 178° / 178°
• Response time: 8 ms G-to-G
• Backlight: LED

Hardware & software components

• Optional touchscreen: projected capacitive multi-touch (on SP2-24T / SP2-24-494KT / SP2-24T-494KT)
• IT option: Intel® Core™ i5 (3.0 GHz), 18 MB cache, 8 GB DDR3 RAM, SATA SSD, dual Gigabit LAN
• OS support: Windows 10 Pro / Windows 11 Pro
• Keyboard/mouse: Anti-microbial medical silicone keyboard with foldable mouse storage; silicone mouse (IP65)

Inputs (front)

• USB: Type-A 2.0 and 3.0 (front)
• Optional video inputs (with VMbasic): DisplayPort, DVI-I Single Link, HDMI (4K@30Hz, 4K@60Hz)

Push buttons (front)

• Standard: main switch, system switch, LUT switch (DICOM normal/bright, Gamma 1.8/2.0/2.2/2.4)
• VMbasic option: input switch (DisplayPort, DVI-I, HDMI), layout presets (PiP, PaP, LR, TB, Quadsplit, Single), rotate inputs

Power

• Maximum consumption: 290 W
• Supply: 100–240 V, 50–60 Hz
• Thermal load: 1044.0 kJ/h

Physical specifications

• Net weight: 105 kg
• Device dimensions (W×H×D): 2000 × 900 × 120 mm
• Niche (W×H×D): 2010 × 910 × 140 mm
• Masking frame (W×H): 2030 × 930 mm

Accessories & connectivity
Front USB ports for peripherals; optional front-frame interfaces can be integrated and mapped to video management inputs.

Technical specifications (summary)

• Primary panel: 24" Full HD (1920×1080)
• Secondary panel: 49" UHD (3840×2160) with DICOM preset
• Brightness: 24" = 350 cd/m²; 49" = 700 cd/m²
• Standard front interfaces: USB Type-A (2.0, 3.0)
• Optional VMbasic for flexible video routing and layouts
