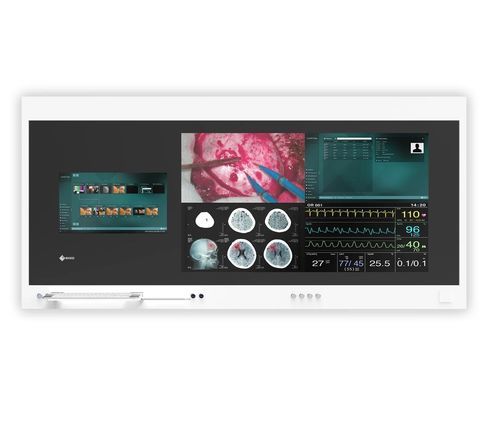

Operating room display CuratOR Surgical Panel SP2-24-554K

ORmedical imagingsurgical

Overview
The CuratOR Surgical Panel SP2-24-554K by EIZO is a wall-mounted operating-room image viewing and workstation combination that integrates two monitors with built-in IT and optional video management. Designed for integration into hospital IT, it supports multiple OR workflows while minimising footprint.

Key Benefits

• Wall-mounted, space-saving installation for operating rooms
• Service-friendly design with hinged front and tool-free access
• Customisable housing, materials and accessory options to match local OR requirements

Main Features

• Five predefined LUTs selectable by button for optimised display of medical images and video (DICOM presets included)
• Multiple monitor configurations: typical combination 24" Full HD workstation + 55" UHD viewing panel; other diagonals available
• Optional projected capacitive multi-touch touchscreen operable with gloves
• Modular internal design with optional VMbasic video management: front or internal signal switching, preset layouts (PiP, PaP, LR, TB, Quadsplit, Single) and input rotation while maintaining layout
• Front USB ports standard; optional front-frame interfaces for direct connection to video management inputs
• Sealed flat front with anti-reflective safety glass for easy cleaning and hygiene; intelligent heat distribution reduces need for specialised ventilation
• Flush or surface mounting options to fit local architecture

Model Variations
SP2-24-554K: without touchscreen
SP2-24T-554K: with 24" touchscreen
SP2-24-554KT: with 55" touchscreen
SP2-24T-554KT: with 24" and 55" touchscreens

Certifications & Standards
CE, UKCA, IEC/EN 62368-1, IEC/EN 60601-1, IEC/EN 60601-1-2, RoHS, WEEE

Included hardware & software highlights

• Optional projected capacitive multi-touch (on touchscreen models)
• Expandable IT components: Intel Core i5 (~3.0 GHz), Intel chipset, 18 MB cache, 8 GB DDR3 RAM, SATA SSD, LAN RJ45 (10/100/1000) ×2
• Operating System: Windows 10 Pro or Windows 11 Pro
• Anti-microbial medical silicone keyboard with integrated foldable mouse storage and silicone mouse (visual 5 keys, laser mouse / IP65)

Video / Signal & Controls

• Optional VMbasic inputs: DisplayPort™, DVI-I Single Link, HDMI® (4K@30Hz), HDMI® (4K@60Hz) ×2
• Front-side USB: USB Type-A 2.0 and 3.0
• Front push buttons: main switch, system switch, LUT switch (DICOM normal, DICOM bright, Gamma 1.8, 2.0, 2.2, 2.4)
• VMbasic controls (optional): input switch, layout switch (PiP, PaP, LR, TB, Quadsplit, Single), rotate inputs while keeping active layout

Power & Thermal
Maximum power consumption: 300 W. Power requirements: 100–240 V / 50–60 Hz / 4–2 A. Thermal load: 1080 kJ/h.

Notes on Installation & Hygiene
Front can be fully sealed and integrated into the OR wall. Intelligent heat distribution across the front reduces the need for specialised ventilation. Supports flush or surface mounting to suit local architecture.

Technical specifications

• Model name: CuratOR Surgical Panel SP2-24-554K
• Brand: EIZO
• Panel 1 (workstation): 24" (1920 × 1080, Full HD), Color TFT LCD, 16.77 million colors, brightness 350 cd/m², contrast 1000:1, response 14 ms
• Panel 2 (viewing): 55" (3840 × 2160, UHD), Color TFT LCD (IPS) with DICOM preset, 1.07 billion colors, brightness 700 cd/m², contrast 1100:1, response 8 ms
• Housing: powder-coated sheet steel; front: powder-coated stainless steel + anti-reflective safety glass (ESG); RAL colour selectable
• Mounting options: flush mounting (surface mounting optional)
• Touchscreen (if applicable): projected capacitive, multi-touch
• IT example spec: Intel® Core™ i5 ~3.0 GHz, 18 MB cache, 8 GB DDR3, SATA SSD, LAN ×2
• OS options: Windows 10 Pro, Windows 11 Pro
• Front inputs: USB Type-A (2.0, 3.0); optional VMbasic inputs: DisplayPort™, DVI-I, HDMI (4K@30Hz), HDMI (4K@60Hz) ×2
• Maximum power consumption: 300 W; Power: 100–240 V, 50–60 Hz
• Net weight: 110 kg
• Dimensions (W × H × D): 2200 × 1000 × 120 mm; Niche: 2210 × 1010 × (depth not specified); Masking frame: 2230 × 1030 mm
