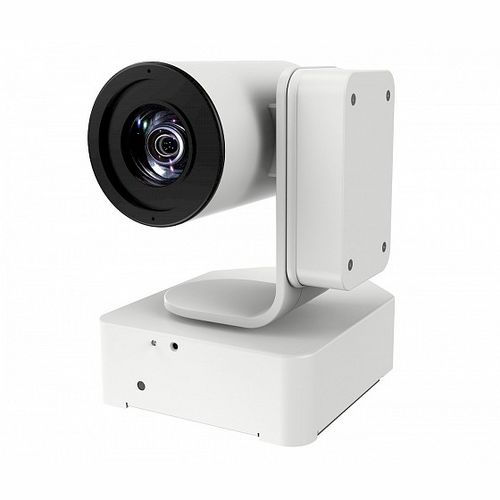

Surgical camera CuratOR® SC430-PTR

digital3840 x 21604K

Overview
This UHD camera system features a fully integrated three-axis mount for recording surgical procedures. This product is no longer in production but may still be available from stock.

Key Features

• 4K UHD resolution (3840 x 2160) with progressive 60 Hz signal for smooth, high-definition images
• Optical 30x motorized zoom for detailed imaging of narrow surgical target areas
• Intelligent stepping technology: pan, tilt and roll movements slow down as zoom increases to keep the field of view steady
• Fully integrated camera head and mount: pan +/-170°, tilt +90° to -30°, roll +/-165° for flexible field-of-view adjustments
• Smooth positioning and intuitive camera movement (parallel movement of field of view when panning/tilting)
• Built-in microphone for audio capture
• Versatile connectivity: HDMI and SDI outputs delivering 4K/60p and Full HD outputs
• Convenient control from CCU front panel, supplied wireless remote, optional wired remote with joystick, or OR software via LAN/RS-232C
• One-cable connection between Camera Head/Mount and Camera Control Unit (video, audio and power over single cable) to reduce cable clutter
• Various camera cable lengths available (5 m, 10 m, 25 m, 30 m and 35 m)
• Exterior can be safely sterilized with alcohol for easy cleaning
• Meets medical, safety and EMC emission standards
• Supplied accessories include AC adapter, AC power cord (2 m), camera cable (25 m), IR remote, rubber feet, ND filter, close-up lens, cable cover, thread-locking fluid, Instructions for Use, Quick Reference Guide
• Warranty: 2 years

Camera Head — Technical Details
Image Sensor: 1/2.5 type CMOS, single chip type
Effective Pixels: 3840 x 2160
Zoom: Optical 30x motorized zoom
Focal Length (f=): 4.6 (W) - 135 (T) mm
Horizontal Field of View (HFOV): 68° (W) - 2.6° (T)
Minimum Object Distance (MOD): 1500 mm (throughout the zoom range); 1000 mm (with close-up lens)
Filter Diameter: 72 mm
Focus Control: Auto, Manual
Iris Control: Auto, Manual
Pan Range: +/-170°
Tilt Range: +90° / -30°
Roll Range: +/-165°
Pan Speed: 8.6 - 0.05 deg/s (7 steps)
Tilt Speed: 8.6 - 0.05 deg/s (7 steps)
Roll Speed: 30 - 0.2 deg/s (7 steps)
Built-in microphone: Yes

Features & Functions
Image Control: Auto Level Control (ALC), Center Weighting Metering, BT.2020 Emulation, White Balance, Sharpness
Gain: Auto, Manual (0 - 45 dB)
Shutter Speed: [59.94 Hz output] 1/60 - 1/10000; [50 Hz output] 1/50 - 1/10000
Picture Flip: Normal, Flip

Video Format
4K UHD: HDMI signal: 2160/59.94p, 2160/50p; SDI: 2160/59.94p, 2160/50p
FHD: HDMI: 1080/59.94p, 1080/59.94i, 1080/50p, 1080/50i; SDI: 1080/59.94p, 1080/59.94i, 1080/50p, 1080/50i

Other Technical Details
Hole Spacing: Camera Mount: 100 x 100 mm
Output Terminals: HDMI x 2, BNC (Quad Link 3G-SDI), BNC (3G-SDI), Audio
Remote Control: LAN, RS-232C, IR remote
Power Requirements: DC 24 V (bundled AC adapter)
Maximum Power Consumption: 55 W
Dimensions: Camera Head and Mount: 162 (W) x 211.5 (H) x 198 (D) mm (with cable cover); Camera Control Unit: 212 (W) x 87.5 (H) x 270 (D) mm (without projection and rubber feet)
Net Weight: Camera Head and Mount: 3.1 kg (with cable cover); Camera Control Unit: 2.9 kg
Operating Temperature: Camera Head and Mount: 0 - 35℃; Camera Control Unit: 0 - 40℃
Operating Humidity: 20 - 80% RH
Certifications & Standards: CE, CB, FCC-A, CAN ICES-3 (A), RoHS, WEEE, IEC60601-1

Characteristics / technical specifications

• Model name: CuratOR SC430-PTR
• Resolution: 4K UHD (3840 x 2160) @ 60p
• Zoom: 30x optical motorized
• Mount ranges: Pan +/-170°; Tilt +90° / -30°; Roll +/-165°
• Min. object distance: 1500 mm (1000 mm with close-up lens)
• Outputs: HDMI (x2), Quad Link 3G-SDI (BNC), 3G-SDI (BNC), Audio
• Control interfaces: LAN, RS-232C, IR, optional wired joystick remote
• Power: DC 24 V (AC adapter supplied); Max consumption 55 W
• Dimensions & weight: Camera Head+Mount 162×211.5×198 mm, 3.1 kg; CCU 212×87.5×270 mm, 2.9 kg
• Operating environment: 0–35℃ (camera head), 0–40℃ (CCU); 20–80% RH
• Certifications: CE, CB, FCC-A, CAN ICES-3 (A), RoHS, WEEE, IEC60601-1
• Supplied accessories and optional cabling lengths (5/10/25/30/35 m)
• Warranty: 2 years
