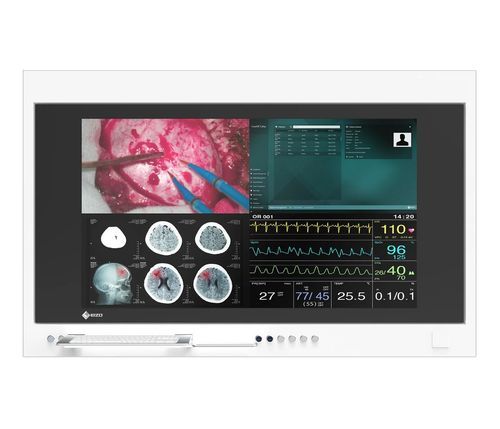

Operating room display SP1-554K

surgical3840 × 21604K UHD

Overview
The CuratOR Surgical Panel SP1-554K is an integrated digital image viewing and IT/video management system for the operating room. Designed for flush or surface wall installation and full integration into hospital IT infrastructures, it delivers a DICOM-preset 55" 4K UHD image for reliable intraoperative visualization and supports common surgical workflows, including remote viewing positions.

Key features

• Space-saving wall-mounted design suitable for flush or surface installation
• Service-friendly front access (hinged front with unique locking, no screws required)
• Customizable housing dimensions and RAL color selection
• Five predefined LUTs selectable by button for optimized medical image viewing
• Multiple monitor options and combination with a 24" Full HD HIS workstation
• Optional projected capacitive multi-touch usable with surgical gloves (SP1-554KT)
• Integrated VMbasic video management: internal/front switching, presets, rotation and layout control
• Front USB ports standard; optional additional front interfaces available
• Flat sealed front (stainless steel + anti-reflective safety glass) for easy cleaning and disinfection

Product features (details)
Optimized view via simple LUT switching: each unit includes an easy-access LUT switch; choose one of five predefined lookup tables to display surgical images and video with appropriate viewing parameters.

Wide monitor options: available in multiple screen diagonals with a 55" 4K UHD (3840 × 2160) panel as a standard configuration. Optionally combine the viewing unit with a 24" Full HD HIS workstation to provide a complete viewing/IT environment while saving space.

Customized housing: housing dimensions and finish can be adapted to operating room conditions; color selectable from the RAL palette and manufactured in powder-coated sheet steel with a stainless steel front.

Intuitive touch operation: optional projected capacitive multi-touch enables glove-compatible control of OR software applications for sterile workflows (SP1-554KT model).

Flexible integrated video management (VMbasic): modular interior allows customer-specific configuration. VMbasic supports internal/video input switching, front-input selection, preset layouts (PiP, PaP, LR, TB, Quadsplit, Single) and rotation of inputs while maintaining the active layout.

Accessories and connectivity: standard front USB Type-A ports (2.0/3.0). Optional front/internal inputs (DisplayPort, DVI-I, HDMI) can be integrated and routed through the video management system.

Easy cleaning and installation: flat sealed front with anti-reflective safety glass for straightforward disinfection; intelligent heat distribution reduces the need for special ventilation; designed for flush or surface-mounted installation.

Specifications (selected details)

• Model variants: SP1-554K (without touchscreen), SP1-554KT (with projected capacitive multi-touch)
• Display: 55" 4K UHD TFT LCD, 3840 × 2160, DICOM preset, LED backlight, 700 cd/m², 1.07 billion colors
• Pixel pitch: 0.315 mm × 0.315 mm; typical contrast 1100:1; viewing angles 178°/178°; response time 8 ms
• Housing: powder-coated sheet steel; front: powder-coated stainless steel + anti-reflective safety glass (ESG); color: configurable by RAL
• Mounting: Flush or surface mounting; niche and masking-frame dimensions provided
• IT (expandable example): Intel Core i5 3.0 GHz, 8 GB DDR3, SATA SSD, dual LAN (10/100/1000)
• OS: Windows 10 Pro / Windows 11 Pro
• Front interfaces: USB Type-A (2.0/3.0); optional VMbasic inputs: DisplayPort, DVI-I, HDMI (4K@30Hz / 4K@60Hz)
• Front controls: main switch, system switch, LUT switch (DICOM normal/bright, Gamma 1.8/2.0/2.2/2.4)
• Power: 100–240 V, 50–60 Hz; max consumption 275 W; thermal load 990 kJ/h
• Dimensions & weight: device 1600 × 1000 × 120 mm; niche 1610 × 1010 × 140 mm; net weight approx. 85 kg
• Standards & certifications: CE, UKCA, IEC/EN 62368-1, IEC/EN 60601-1, IEC/EN 60601-1-2, RoHS, WEEE
