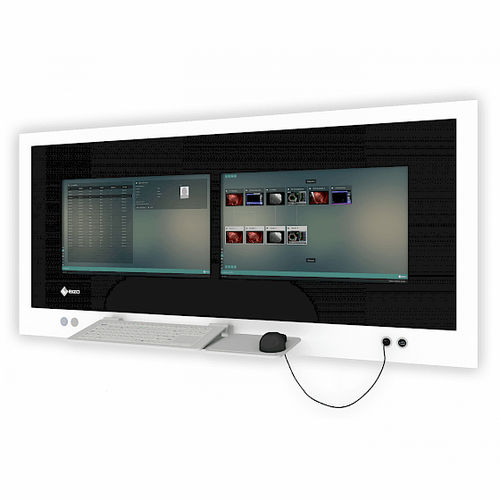

Surgery computer workstation CuratOR® SP2-24-24

wall-mountedmodularwaterproof

Overview
The Surgical Panel SP2-24-24 by CuratOR, with two integrated monitors and built-in IT and video management components, is a digital image viewing and workstation system designed for operating rooms. Integrated into the hospital IT infrastructure, it supports multiple workflows and provides a space-saving combination of work and viewing stations in a single device.

Key features

• Space-saving flush or surface wall mounting
• Hinged front for tool‑free access and a unique locking system for maintenance
• Customizable housing materials, dimensions and accessories; any RAL color available

Product features

• Intuitive touch operation: Optional projected capacitive multi-touch screen, glove-compatible for sterile use.
• Customized housing: Powder-coated sheet steel housing with powder-coated stainless steel front and anti-reflective safety glass (ESG); dimensions and color customizable.
• Wide monitor options: Standard dual 24" Full HD (1920 × 1080) TFT LCD panels; other diagonals available; option to combine viewing unit with a 24" Full HD HIS workstation to save space.
• Flexible IT and video management: Modular interior design allows customer-specific configurations and easy service access.
• Accessories and connectivity: Front USB Type-A ports (USB 2.0 and 3.0) standard; optional additional front-frame interfaces connected to video inputs.
• Easy cleaning: Flat sealed front surface for disinfection; intelligent heat distribution reduces need for specialized ventilation.
• Mounting options: Designed for flush or surface mounting to suit local architecture and site conditions.
• Easy maintenance: Hinged front provides access without tools; locking system avoids removal of screws.

Model variations / Certifications
SP2-24-24: without touchscreen
SP2-24T-24: touchscreen (24" left)
SP2-24-24T: touchscreen (24" right)
SP2-24T-24T: touchscreen (both 24")
Certifications: CE, UKCA, IEC/EN 62368-1, IEC/EN 60601-1, IEC/EN 60601-1-2, RoHS, WEEE

Housing
Material: Powder-coated sheet steel
Front: Powder-coated stainless steel + anti-reflective safety glass (ESG)
Color: Any RAL color available
Mounting: Flush mounting standard; surface mounting optional

Panel (left)
Size: 24" (60.5 cm, 16:9 aspect ratio)
Panel type: Color TFT LCD
Native resolution: 1920 × 1080 (Full HD)
Display colors: 16.77 million colors
Pixel pitch (H × V): 0.275 mm × 0.275 mm
Brightness (typical): 350 cd/m²
Contrast ratio (typical): 1000:1
Viewing angles (H / V, typical): 178°, 178°
Response time (typical): 14 ms (Gray-to-Gray)
Backlight: LED

Panel 2 (right)
Size: 24" (60.5 cm, 16:9 aspect ratio)
Panel type: Color TFT LCD
Native resolution: 1920 × 1080 (Full HD)
Display colors: 16.77 million colors
Pixel pitch (H × V): 0.275 mm × 0.275 mm
Brightness (typical): 350 cd/m²
Contrast ratio (typical): 1000:1
Viewing angles (H / V, typical): 178°, 178°
Response time (typical): 14 ms (Gray-to-Gray)
Backlight: LED

Hardware & software components
Touchscreen: Projected capacitive multi-touch (available for SP2-24T-24, SP2-24-24T, SP2-24T-24T)
IT components (expandable within PC specification): Intel® Core™ i5 processor 3.0 GHz, Intel® chipset, 18 MB cache, 8 GB DDR3 RAM, SATA SSD, LAN RJ45 10/100/1000 Base‑T × 2
Operating system: Windows 10 Pro, Windows 11 Pro
Keyboard / mouse: Anti‑microbial medical silicone keyboard with integrated foldable mouse storage; silicone laser mouse (IP65, occupies 1× USB)

Inputs (front side)
USB: USB Type‑A (2.0, 3.0)

Push Buttons (front side)
Standard: Main switch, system switch, LUT switch (DICOM normal, DICOM bright, Gamma 1.8, 2.0, 2.2, 2.4)

Power
Maximum power consumption: 220 W
Power requirements: 100–240 V / 50–60 Hz / 4–2 A
Thermal load: 792 kJ/h

Physical specifications
Net weight: 100 kg
Dimensions (mm): Device (W × H × D): 1400 × 625 × 120
Niche (W × H × D): 1410 × 635 × 140
Masking frame (W × H): 1430 × 655

Technical specifications

• Product name: CuratOR Surgical Panel SP2-24-24
• Function: Central workstation for image and video signals in the operating theatre; combined work and viewing station
• Panels: Two 24" Full HD TFT LCD panels (1920 × 1080), 350 cd/m² brightness, 1000:1 contrast, 178° viewing angles
• Touch option: Projected capacitive multi-touch (available for specific model variations)
• IT: Intel Core i5 (3.0 GHz), 8 GB DDR3, SATA SSD, dual Gigabit LAN
• OS support: Windows 10 Pro, Windows 11 Pro
• Front interfaces: USB Type‑A (2.0, 3.0) standard; optional additional front interfaces available
• Housing: Powder‑coated sheet steel; front: powder‑coated stainless steel + anti‑reflective safety glass (ESG); customizable RAL color
• Mounting: Flush mounting standard; surface mounting optional
• Power: 100–240 V, 50–60 Hz; max consumption 220 W
• Weight & dimensions: Net weight 100 kg; device 1400 × 625 × 120 mm
• Certifications: CE, UKCA, IEC/EN 62368-1, IEC/EN 60601-1, IEC/EN 60601-1-2, RoHS, WEEE
