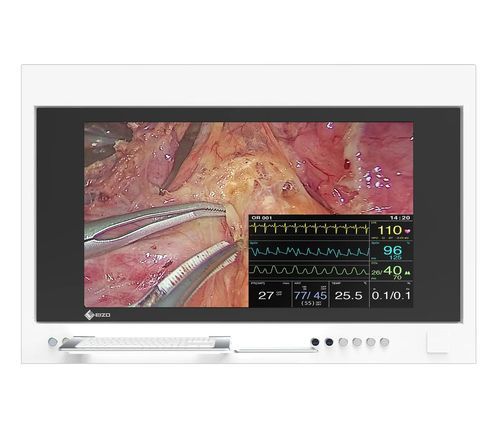

Surgical display SP1-434K

operating room3840 × 21604K UHD

Product overview
The CuratOR Surgical Panel SP1-434K integrates a 43" UHD viewing monitor with built-in IT and video management components for use in the operating room. Designed for integration into the hospital IT structure, it supports clinical workflows and provides consistent, high-quality visualization for the OR team from multiple viewing positions.

Key benefits

• Space-saving wall or flush mounting to optimize OR layout
• Easy service and maintenance with hinged front and unique locking system—no screws required for component access
• Customizable housing dimensions and selectable RAL colors to match local requirements

Optimized view through simple LUT switching
Each 4K Surgical Panel includes an accessible LUT switch with five predefined lookup tables. Operators can select the best preset for different medical images and video sources at the press of a button to ensure optimal diagnostic viewing conditions.

Wide-ranging monitor options
The Surgical Panel is available in multiple screen diagonals to meet local application needs. It can be combined with a 24" Full HD HIS workstation to provide a compact viewing and workstation environment.

Customized housing
Housing dimensions and front design can be adapted to the OR environment. Front color is selectable from the RAL palette to comply with on-site color concepts.

Intuitive touch operation
Optional projected-capacitive multi-touch enables intuitive operation of OR software. Touchscreens are usable with surgical gloves and suited for sterile environments (SP1-434KT variant).

Flexible integrated video management (VMbasic)
Modular interior configuration allows customer-specific setups. VMbasic (optional) provides switching between internal and front-accessible video inputs, preset layout selection and rotation of inputs while retaining the active layout.

Accessories and connectivity
Front USB ports are standard for peripheral connection. Additional front interfaces can be integrated and mapped to internal video management inputs as required.

Easy cleaning and installation
Flat, sealable front surface allows full integration into the OR wall and simplifies cleaning and disinfection. Intelligent heat distribution over the front surface eliminates the need for specialized ventilation. Supports flush or surface mounting to suit architectural constraints.

Easy maintenance and service
Hinged front provides tool-free access to installed components. The locking system facilitates fast and safe on-site maintenance.

Technical specifications

• Model variations: SP1-434K (without touchscreen), SP1-434KT (with touchscreen)
• Certifications & standards: CE, UKCA, IEC/EN 62368-1, IEC/EN 60601-1, IEC/EN 60601-1-2, RoHS, WEEE
• Housing material: Powder-coated sheet steel
• Front: Powder-coated stainless steel + anti-reflective safety glass (ESG)
• Color: Available in any RAL color
• Mounting options: Flush mounting (optional surface mounting)
• Panel size: 43" (108.0 cm, 16:9)
• Panel type: TFT color LCD with DICOM® preset
• Native resolution: 3840 × 2160 (UHD)
• Display colors: 1.07 billion colors
• Pixel pitch (H x V): 0.245 mm × 0.245 mm
• Brightness (typical): 700 cd/m²
• Contrast ratio (typical): 1000:1
• Viewing angles (H / V, typical): 178º / 178º
• Response time (typical): 9 ms (Gray-to-Gray)
• Backlight: LED
• Touchscreen: Projected capacitive, multi-touch (SP1-434KT only)
• IT components (example / expandable): Intel® Core™ i5 3.0 GHz, Intel® chipset, 18 MB cache, 8 GB DDR3 RAM, SATA SSD, LAN RJ45 10/100/1000 Base-T x2
• Operating system: Windows 10 Pro, Windows 11 Pro
• Keyboard / mouse: Anti-microbial medical silicone keyboard with integrated mouse storage (foldable); silicone mouse (visual 5 keys, laser mouse / IP65)
• Front inputs: USB Type-A (2.0, 3.0)
• Signal inputs (optional, with VMbasic): DisplayPort™, DVI-I Single Link, HDMI® (4K@30Hz), HDMI® (4K@60Hz) x2
• Front push buttons - standard: Main switch, system switch, LUT switch (DICOM normal, DICOM bright, Gamma 1.8, 2.0, 2.2, 2.4)
• VMbasic push buttons (optional): Input switch (DisplayPort, DVI-I, HDMI 4K@30Hz, HDMI 4K@60Hz x2), layout switch (PiP, PaP, LR, TB, Quadsplit, Single), rotate inputs with active layout
• Maximum power consumption: 220.0 W
• Power requirements: 100 - 240 V / 50 - 60 Hz / 4 - 2 A
• Thermal load: 792.0 W
• Net weight: 70 kg
• Dimensions (mm): Device (W × H × D): 1300 × 800 × 120; Niche (W × H × D): 1310 × 810 × 140; Masking frame (W × H): 1330 × 830
