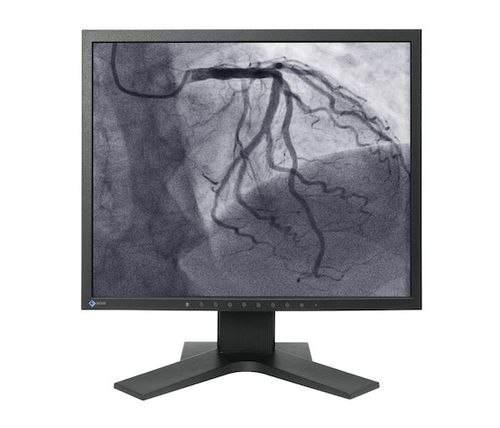

Medical display CuratOR® LS1910

ORmedical imagingdiagnostic

Overview
19-inch surgical monitor for diagnostic image display in cardiology, angiography and hybrid operating-room environments. Factory-calibrated to DICOM® Part 14 grayscale presets for consistent diagnostic shading. Supports digital and analogue video inputs and offers VESA mounting and stand options for operating theatre installations.

Key features

• Supports multiple input resolutions; display at actual size, enlarged or full screen
• Digital and analogue inputs: DisplayPort and DVI-I (digital and analogue RGBHV)
• Automatic recognition of connected analogue video signals; adjustable via On-Screen Display (OSD)
• Includes adapters for legacy analogue connections (D-Sub, DVI, BNC)
• Five factory DICOM® Part 14 grayscale presets aligned with diagnostic monitor requirements
• IPS-like panel technology for wide viewing angles and stable, flicker-free images
• Internal backlight sensor and automated stability function for consistent brightness
• VESA 100 x 100 mm mounting; optional floor stand (LS1910-S) with tilt, swivel and height adjustment
• Front OSD access with lockable buttons; prioritised input for emergency signals

Panel / Display
Panel type: IPS-like
Backlight: LED
Size: 19" (48.3 cm)
Native resolution: 1280 x 1024 (5:4)
Viewable image (H x V): 376.3 x 301.1 mm
Pixel pitch (H x V): 0.294 x 0.294 mm
Colors: 8-bit, 16.77 million
Viewing angles (H / V): 178° / 178°
Brightness (typical): 330 cd/m²; Recommended for calibration: 250 cd/m²
Contrast ratio (typical): 1000:1
Response time (typical): 13 ms rising, 12 ms falling

Video Signals / Inputs
Input terminals: DisplayPort, DVI-I (digital & analogue RGBHV)
Digital scanning frequency (H / V): 30 - 80 kHz / 60 - 75 Hz
Analog scanning frequency (H / V): 30 - 80 kHz / 50 - 85 Hz
Sync formats: Separate Sync, Composite Sync, SoG

USB
Upstream: USB 2.0 Type-B (monitor ↔ PC communication)
Downstream: USB 2.0 Type-A (external devices)

Power
Power: AC 100 - 240 V, 50 / 60 Hz
Maximum consumption: < 58 W
Power save: < 10 W
Power management: Digital (DVI DMPM); Analog (VESA DPM)
Power output: DC 5 V, 1 A (Hirose)

Features & Functions

• Prioritised DVI-A input for emergency signals
• Backlight sensor for brightness compensation
• OSD with selectable languages and lockable controls
• Five factory DICOM® Part 14 grayscale presets (DIN 6868-157 compliance for diagnostic displays)

Certifications & Standards
CE / UKCA (Medical Device), IEC/EN 60601-1, CAN/CSA C22.2 No.60601-1, ANSI/AAMI ES60601-1, EN60601-1-2 Class B, FCC-B, RoHS, WEEE, CCC, BIS

Physical & Environmental
Degree of protection: IP20
Net weight: LS1910 (without stand): 4.3 kg; LS1910-S (with stand): 6.1 kg
VESA hole spacing: 100 x 100 mm, M4, depth 5–10 mm

Technical specifications

• Model variants: LS1910 (without stand), LS1910-S (with stand, black)
• Native resolution: 1280 x 1024 (5:4)
• Panel size: 19" / Viewable image: 376.3 x 301.1 mm
• Brightness: 330 cd/m² (typical); Calibration target: 250 cd/m²
• Contrast ratio: 1000:1
• Viewing angles: 178° / 178°
• Colors: 8-bit (16.77 million)
• Response time: 13 ms rise / 12 ms fall
• Inputs: DisplayPort, DVI-I (digital & analogue)
• USB: Upstream USB 2.0 Type-B; Downstream USB 2.0 Type-A
• Power: AC 100–240 V, <58 W; DC output 5 V / 1 A (Hirose)
• Features: DICOM® Part 14 calibration, backlight sensor, prioritised DVI-A input, OSD lock
• Certifications: CE/UKCA, IEC/EN60601-1, CAN/CSA, ANSI/AAMI ES60601-1, EN60601-1-2 Class B, FCC-B, RoHS, WEEE, CCC, BIS
• IP rating: IP20
