Operating room monitor RadiForce® LS580W

medical imaginghigh-definition58"

Overview

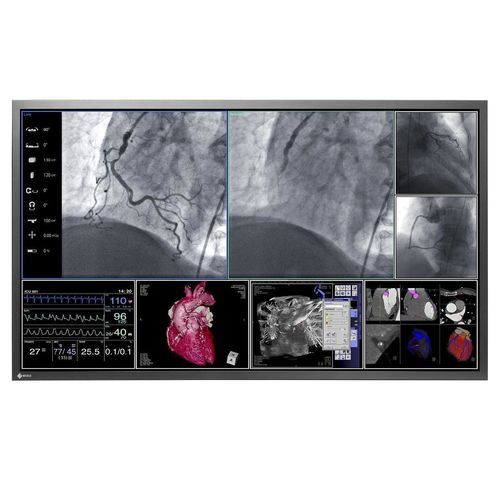

The CuratOR LS580W is a 58" (146 cm) 4K UHD surgical monitor engineered for interventional and operating-room environments to display multiple medical image sources simultaneously with diagnostic fidelity. It supports flexible multi-window layouts, ceiling or VESA mounting, continuous brightness stabilization and factory DICOM Part 14 grayscale adjustment for consistent image rendering.

Key features

• 58" (146 cm) 4K UHD panel — 3840 x 2160 native resolution for single‑screen multi‑image visualization.
• Continuous brightness stabilization via internal backlight sensor for fast startup and compensation for temperature and aging.
• Factory-set greyscales compliant with DICOM® Part 14 for diagnostic consistency.
• EIZO Digital Uniformity Equalizer (DUE) for uniform brightness across the entire screen.
• Redundant architecture: dual power supplies, dual LED backlights and dual data links for fail‑safe operation.
• Two independent LED backlights: extended lifetime, lower power consumption, mercury‑free disposal.
• Wide viewing angles (176°/176° typical) to minimize color shift for multiple viewers.
• Minimal input-to-display latency suitable for time‑critical procedures.

Clinical benefits

• Single‑screen overview: view all essential images on one large display without bezel interruptions.
• Reliable diagnostic display: DICOM-calibrated greyscales and stable brightness support accurate image interpretation.
• Operational continuity: redundant components and monitoring function help maintain display availability during procedures.
• Flexible installation: compatible with ceiling suspension and VESA‑compliant mounts for OR integration.

Accessories & compliance

• Supplied items may include dual link DVI‑D cables and a utility disk with instructions.
• Optional accessories: monitor managers, DVI/HDMI adapters, transmission links, protection screens.
• Meets medical safety and EMC standards: CE / UKCA (Medical Device), IEC/EN60601‑1, EN60601‑1‑2, FDA Class II and other regional certifications.

Technical specifications (select)

• Panel type: Color TFT LCD (VA)
• Backlight: LED (two independent backlights)
• Diagonal / viewable: 58" (146 cm) / Viewable image 1270.1 x 721.4 mm
• Native resolution: 3840 x 2160 (16:9)
• Brightness (typical): 700 cd/m² — recommended calibration 350 cd/m²
• Contrast ratio (typical): 4000:1
• Viewing angles (H/V): 176° / 176° (typical)
• Input terminals: DVI‑D (Dual Link) x 2
• Power: AC 100–240 V, 50/60 Hz — Max consumption 350 W
• Net weight (without stand): 47 kg
• VESA hole spacing: 400 x 400 mm (M8)
• Degree of protection: IP20
