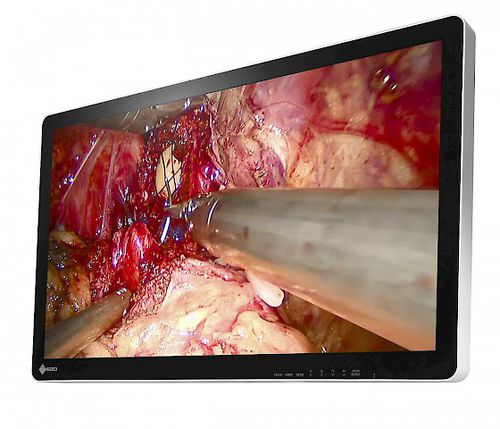

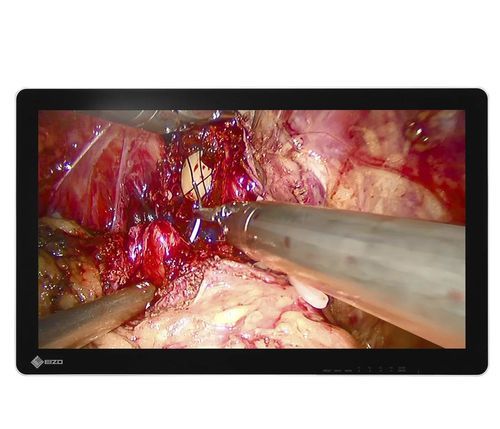

Medical display CuratOR® EX3220-3Dendoscopysurgicalfull HD
Add to favorites
Compare this product
Characteristics
- Applications
- medical, endoscopy, surgical
- Resolution
- full HD
- Display size
- 32", 31.5in
- Technology
- LCD, LED-backlit
- Options
- waterproof, 3D, fanless
- Brightness (cd/m²)
650 cd
- Response time
16 ms
- Power consumption
97 W
- Viewing angle
178 °
- Weight
10 kg
(22 lb)- Width
760 mm
(29.9 in)- Height
463 mm
(18.2 in)- Depth
43.9 mm
(1.7 in)
Description
Product Overview
Key Features
3D and Image Handling
Connectivity and Control
Design & Installation
Certifications & Compliance
Technical specifications
- CuratOR EX3220-3D is a 31.5-inch widescreen surgical 3D monitor designed for endoscopy, microsurgery and robotic-assisted surgery.
- Native Full HD (1920 x 1080) on an IPS panel with LED backlight, optical bonding and a fully flat protective front glass.
- High brightness (700 cd/m²), typical contrast ratio 1200:1, fanless slim design and IP45 front protection for operating-room use.
Key Features
- Polarized 3D system for bright, flicker-free stereoscopic images; supplied fogless polarized 3D glasses (battery-free)
- Optical bonding between LCD and protective glass to reduce reflections, prevent condensation and improve durability
- Protective glass hardness > 9H and wide viewing angles (178° / 178° in 2D)
- Slim, fanless construction for quiet operation, easy cleaning and reduced contamination risk; cable cover for safe cable management
- Front IP45 and overall IP32 ingress protection
3D and Image Handling
- Supports multiple 3D signal formats: Side by Side, Line by Line, Top and Bottom, Simulcast (SIMUL Level-B)
- Polarized 3D preserves color characteristics without flicker; 3D mode supports 180° rotation and parallax adjustment (vertical/horizontal)
- Picture-by-Picture (PbyP) and Picture-in-Picture (PinP) support; independent sub-image adjustment in 2D mode (gamma or DICOM preset)
Connectivity and Control
- Multiple video inputs/outputs for modality connectivity including 3G-SDI and DVI-D (HDCP 1.4)
- External control via GPI and RS-232C for switching 3D/2D, inputs and screen rotation
Design & Installation
- Fully flat protective front glass with rounded corners for OR safety
- Fanless design eliminates vents for easier cleaning and disinfection; standard VESA mounting for ceiling arms and wall installations
Certifications & Compliance
- Listed with multiple medical and safety/EMC standards; FDA Class I, CE / UKCA (Medical Device) and other regional certifications as applicable
Technical specifications
- Model: EX3220-3D
- Panel: 31.5-inch IPS with optical bonding and protective glass
- Resolution: 1920 x 1080 (Full HD)
- Viewable area (H x V): 698 x 393 mm; pixel pitch 0.364 x 0.364 mm
- Colors: up to 10-bit (SDI) / 8-bit standard
- Brightness: 700 cd/m²; Contrast: 1200:1; Response time 8 ms (GTG)
- 3D formats: Full HD Side by Side, Line by Line, Top and Bottom, SIMUL Level-B
- Video I/O: BNC (3G-SDI) x2, DVI-D x2 (HDCP 1.4), D-Sub, composite/S-Video as applicable
- Power: AC 100-240 V, 50/60 Hz; max consumption 106 W; DC output 5 V / 1 A
- Ingress protection: IP45 (front), IP32 (rear)
- Net weight (without stand): 10.8 kg; VESA: 200 x 200 mm / 100 x 100 mm
- Accessories: AC power cord, AC adapter, anti-fog polarized 3D glasses x3, VESA screws, cable cover, installation manual (PDF)
Catalogs
EX3220-3D
2 Pages
