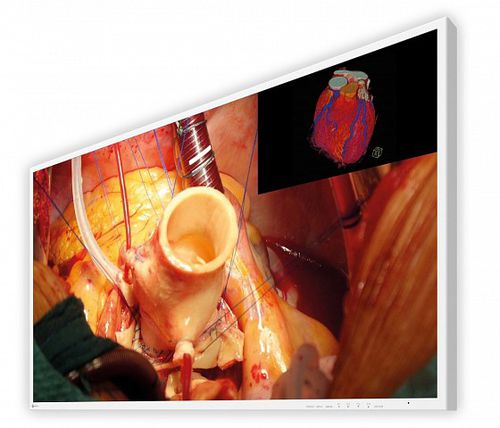

Surgical monitor CuratOR® EX4342

medicalOR4K

Overview
The CuratOR EX4342 is a 43" surgical monitor with 4K UHD (3840×2160) resolution, HDR (PQ & HLG) support and BT.2020 color emulation. Designed for endoscopy and microsurgery, it features an IPS panel with protective laminated glass and an IP45-rated front for hygienic cleaning.

Key Features

• 4K UHD (3840×2160) for detailed visualization
• Typical brightness: 700 cd/m²
• BT.2020 color emulation for improved differentiation of subtle tones
• HDR support (PQ and HLG)
• Picture-by-Picture (PbyP) and Picture-in-Picture (PinP)
• Auto Input Detection for reliable signal switching
• Approx. 16.4 kg and VESA-compatible mounting
• Fully flat front with protective glass (front: IP45)

Display & Imaging

• Panel: IPS with 9H laminated protective glass
• Color depth: 10-bit (SDI) up to 1.07 billion colors; 8-bit: 16.77M colors
• Viewing angles: 178°/178° (H/V)
• Contrast ratio: 1000:1 (typical)
• Response time: 8 ms (gray-to-gray)
• Color gamut: BT.2020 emulation for surgical color accuracy

Connectivity & Video Signals

• Inputs: BNC (3G-SDI), BNC (12G-SDI), DVI-D, DisplayPort, HDMI
• Outputs: DisplayPort, BNC (12G-SDI), DVI-D (pass-through)
• Supports 4K@60 Hz over single-cable interfaces
• 12G-SDI for stable long-distance transmission (approx. up to 30 m)

Design & Installation

• Model variation: EX4342 (without stand)
• Cabinet color: White
• Net weight: approx. 16.4 kg
• VESA: 400×200 mm, M8, depth 8–15 mm (wall/ceiling/cart mounting)
• Protective cable cover supplied for tidy and hygienic cable management

Power & Consumption

• AC input: 100–240 V, 50/60 Hz
• Monitor power: DC 48 V, 3.0 A
• Max power consumption: 144 W
• Power output: DC 5 V, 2 A

Safety, Standards & Accessories

• Selected certifications: CE/UKCA (Medical Device), ANSI/AAMI ES60601-1, CAN/CSA, IEC/EN 60601-1, FCC-A, RoHS, WEEE, CCC, BIS
• FDA classification: Class I (as indicated)
• Supplied accessories (may vary): cable cover, 2 cable ties, 4 monitor screws, Utility Disk (IFU, Installation Manual)
• Optional accessories: Wall mount FWM6300; VESA adapter 400×200

Use & Clinical Benefits

• Engineered for 24/7 use in operating rooms with a hygienic, fully flat front
• Displays tissue structures and fine details for minimally invasive and open procedures
• Features such as 180° rotation, mirroring, independent side-by-side signal adjustment and gamma/DICOM presets improve OR workflow

Technical specifications

• Model: EX4342 (CuratOR EX4342)
• Panel type: IPS with laminated protective glass (9H)
• Backlight: LED
• Size: 109.2 cm / 43" (16:9)
• Native resolution: 3840×2160
• Viewable image size (H×V): 941.2×529.4 mm
• Pixel pitch: 0.2451×0.2451 mm
• Display colors: 10-bit (SDI) up to 1.07B; 8-bit: 16.77M
• Brightness (typical): 700 cd/m²
• Contrast ratio: 1000:1
• Response time: 8 ms (gray-to-gray)
• Input/Output terminals: BNC (3G/12G-SDI), DVI-D, DisplayPort, HDMI
• Simultaneous display: PbyP (2) / PinP
• OSD languages include English, German, French, Spanish, Italian, Japanese, Chinese, Russian, Portuguese
• Communication: RS-232C
• Protection: IP45 (front), IP32 (rear)
• Net weight: approx. 16.4 kg
• VESA spacing: 400×200 mm, M8, depth 8–15 mm
• Power: AC 100–240 V, 50/60 Hz; Monitor DC 48 V, 3.0 A; Max 144 W
• Supplied accessories: cable cover, cable ties x2, monitor screws x4, Utility Disk (IFU, Installation Manual)
