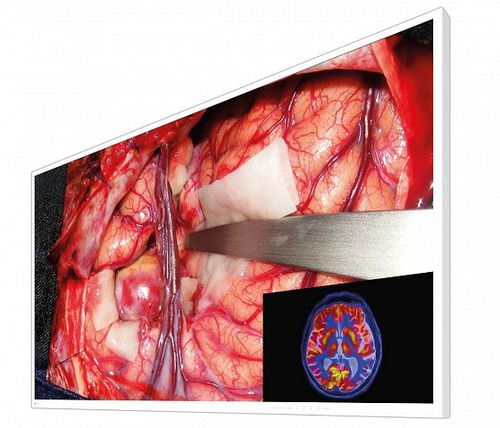

Endoscopy display EX5542

operating roomsurgical4K

Product overview
55-inch surgical widescreen monitor CuratOR EX5542 with 4K UHD (3840×2160) resolution and high brightness for endoscopy, microsurgery and other high-precision procedures.

Key display features

• 4K UHD resolution (3840×2160) delivering ultra high-definition surgical and endoscope images
• High brightness: typical 700 cd/m² with energy-efficient LED backlight
• Wide color gamut with BT.2020 emulation for accurate reproduction of subtle color tones
• HDR support: perceptual quantization (PQ) and hybrid log-gamma (HLG) compatibility
• 10-bit colors over SDI (up to 1.07 billion colors) and 8-bit color support (16.77 million colors)
• Wide viewing angles: 178° / 178°; typical contrast ratio: 1100:1; response time: 8 ms gray-to-gray

Image management & multi-source functions

• Picture-by-Picture (PbyP) and Picture-in-Picture (PinP) for simultaneous display of two sources
• Independent image adjustments per source (gamma selection, DICOM® Preset Mode)
• Auto Input Detection to automatically switch inputs if the selected signal is lost
• Output terminals to pass the same image to additional monitors for multi-monitor setups

Connectivity

• Input terminals: BNC (3G-SDI), BNC (12G-SDI), DVI-D, DisplayPort, HDMI
• Output terminals: BNC (12G-SDI), DVI-D, DisplayPort
• Supports 4K UHD at 60 fps over a single cable via DisplayPort or HDMI; 12G-SDI enables stable long-distance transmission
• Specialized locking mechanism for HDMI connectors to ensure stable cable connection

Design, hygiene & installation

• Fully flat front design to facilitate cleaning and disinfection in sterile environments
• Front protected with laminated hard glass (hardness 9H); degree of protection: front IP45, whole unit IP32
• Cable cover included to keep connections neat and maintain safety and hygiene
• Net weight approx. 29.3 kg and VESA mounting compatible (400 x 200 mm, M8, depth 11–16 mm)

Power & environmental

• Power requirements: 100–240 V, 50/60 Hz
• Maximum power consumption: 170 W
• Power output for peripherals: DC 5 V, 2 A

Included & optional accessories

• Supplied accessories: cable cover, monitor attachment screws x4, cable tie x2, Utility Disk (Instructions for Use, Installation Manual)
• Optional accessory: wall mount FWM6300

Certifications & standards
CE / UKCA (Medical Device); ANSI/AAMI ES60601-1; CAN/CSA‑C22.2 No. 60601-1; IEC/EN 60601-1; VCCI-B; FCC-B; CAN ICES-3(B); RCM; RoHS; China RoHS; WEEE; CCC

Technical specifications

• Commercial name: CuratOR EX5542
• Panel type: IPS with protective glass
• Backlight: LED
• Size: 139.7 cm / 55"
• Native resolution: 3840 x 2160 (16:9)
• Viewable image size (H x V): 1209.6 x 680.4 mm
• Pixel pitch (H x V): 0.315 x 0.315 mm
• Display colors: 10-bit (SDI) up to 1.07 billion; 8-bit: 16.77 million
• Brightness (typical): 700 cd/m²; Contrast ratio (typical): 1100:1; Response time (typical): 8 ms
• Color gamut: BT.2020 emulation
• Simultaneous display: Picture-by-Picture (2 PbyP), Picture-in-Picture (PinP)
• OSD languages include English, German, French, Spanish, Italian, Swedish, Japanese, Simplified Chinese, Traditional Chinese, Russian, Portuguese
• Communication connector: RS-232
• Other functions: Auto Input Detection, gamma switching, color temperature switching
• Degree of protection: IP45 (front), IP32 (rear)
• Protective glass: laminated, hardness 9H
• Net weight: approx. 29.3 kg
• VESA hole spacing: 400 x 200 mm, M8, depth 11–16 mm
• Power: 100–240 V, 50/60 Hz; Max consumption 170 W; Power output DC 5 V, 2 A
