OR display CuratOR EX3220

surgicaloperating roomendoscopy

Overview

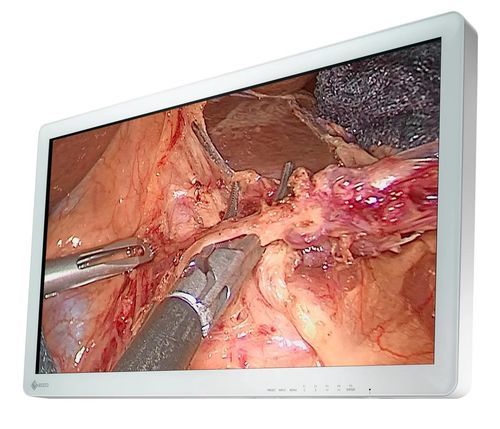

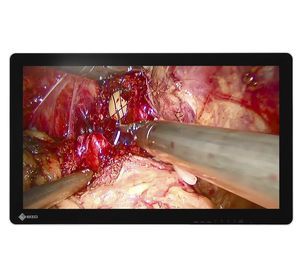

The CuratOR EX3220 is a 31.5-inch wide surgical monitor with Full HD (1920 x 1080) resolution and an IPS panel designed to reproduce endoscopic and operating-microscope images with high fidelity. The monitor features an energy-efficient LED backlight, typical brightness of 650 cd/m² and a contrast ratio of 1400:1 for clear visualization in the operating room.

Key Features

• High brightness (650 cd/m²) with IPS panel for wide viewing angles
• Front protection rating IP45 (overall device IP32)
• Slim, fanless design for quiet operation and easy disinfection
• Fully flat front with protective panel and rounded corners for hygiene and safety
• 180° image rotation and mirroring
• Picture-by-Picture (PbyP) and Picture-in-Picture (PiP) for simultaneous multi-source viewing
• Independent display settings per input (gamma 1.8–2.6 or DICOM® Preset Mode)
• Multiple input/output signals and loop-through support; standard VESA mounting

Display and Imaging
The EX3220 uses an IPS LCD with LED backlight to deliver consistent color and wide viewing angles (178°/178°). It supports 10-bit color via SDI and 8-bit signals, providing accurate rendering of surgical images. Typical response time is 16 ms (black-white-black). Display modes include adjustable gamma and DICOM® Preset Mode for medical grayscale viewing.

Design & Hygiene
The front surface is fully flat and protected by a safety panel; corners are rounded to reduce interference with surrounding equipment. The monitor achieves IP45 at the front to resist splash and particle ingress; the complete unit is IP32. A cable cover keeps connections tidy to enhance safety and hygiene in the OR. The fanless construction eliminates ventilation openings for simplified cleaning and reduced airflow disturbance.

Usability & Functionality

• Rotate or mirror the image by 180° to align with surgeon and assistant sightlines
• PbyP and PiP modes allow adjustable size and position of secondary sources
• When two signals are displayed, each can use independent display parameters (gamma 1.8–2.6 or DICOM® Preset Mode)
• GPI and RS-232C enable external control of input selection and screen rotation for integration with surgical systems

Supplied Accessories (typical)

• AC power cord
• AC adapter
• Screws for VESA adapter x8
• Cable cover
• Utility disk (PDF installation manual) and instructions for use (may vary by country)

Technical specifications

• Model: CuratOR EX3220
• Model variations: EX3220-WT: without stand
• Cabinet color: White
• Panel type: IPS with protective panel
• Backlight: LED
• Size: 80.1 cm / 31.5"
• Native resolution: 1920 x 1080 (16:9)
• Viewable image size (H x V): 698 x 393 mm
• Pixel pitch (H x V): 0.364 x 0.364 mm
• Display colors: 10-bit (SDI) – up to 1.07 billion; 8-bit – 16.77 million
• Viewing angles (H / V, typical): 178° / 178°
• Brightness (typical): 650 cd/m²
• Contrast ratio (typical): 1400:1
• Response time (typical): 16 ms (black-white-black)
• Color gamut (typical): sRGB
• Input terminals: BNC (3G-SDI) x2, DVI-D x2 (HDCP 1.4), D-Sub 15 pin (mini), BNC (RGB C-Sync or Component), S-Video, BNC (Composite)
• Output / Loop through: BNC (3G-SDI) x2, DVI-D, BNC (RGB C-Sync or Component), S-Video, BNC (Composite)
• Digital scanning frequency (H / V): 15–75 kHz / 24–60 Hz
• Analog scanning frequency (H / V): 15–80 kHz / 24–85 Hz
• Sync formats: Separate, Composite, Sync on green
• Power requirements: AC 100–240 V, 50/60 Hz
• Maximum power consumption: 97 W
• Power output: DC 5 V, 1 A
• Simultaneous display: Picture-by-Picture (2 PbyP), Picture-in-Picture (PiP)
• OSD languages: English, German, French, Italian, Spanish, Swedish, Japanese, Simplified Chinese, Traditional Chinese
• Communication connectors: RS-232C, GPI
• Other functions: 180° rotation, mirroring
• Degree of protection: IP45 (front), IP32 (rear)
• Net weight (without stand): 9.9 kg
• VESA hole spacing: 200 x 200 mm (M6, depth 7–10 mm), 100 x 100 mm (M4, depth 5–9 mm)
• Certifications & standards: CE / UKCA (Medical Device), ANSI/AAMI ES60601-1, CAN/CSA-C22.2 No. 60601-1, IEC/EN60601-1, VCCI-A, FCC-A, CAN ICES-3(A), RCM, RoHS, China RoHS, WEEE, CCC, EAC, BIS; FDA classification: Class I
