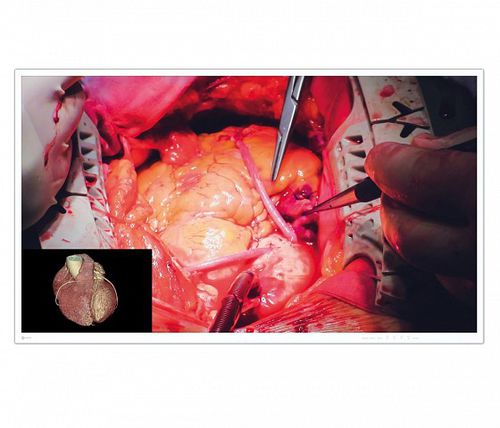

Surgical monitor CuratOR® EX4942

medical4K49in

Product overview
A 49-inch widescreen surgical monitor with native 4K UHD (3840 x 2160) resolution and 700 cd/m² typical brightness, optimized for endoscopy, microsurgery and other high-precision procedures. Reproduces 4K endoscope and operating microscope images with wide-gamut and HDR support for clinical workflows.

Key features

• 4K UHD native resolution (3840 x 2160)
• High brightness: 700 cd/m² (typical) with energy-efficient LED backlight
• Exact colour rendering: BT.2020 emulation / wide color gamut
• HDR support: PQ (Perceptual Quantization) and HLG (Hybrid Log-Gamma)
• Picture-in-Picture (PinP) and Picture-by-Picture (PbyP) for simultaneous multi-signal viewing
• Independent adjustment for PinP/PbyP images (gamma and DICOM preset modes)
• Auto Input Detection switches to another connected input if the selected video signal is lost
• Streamlined connectivity: BNC (3G-SDI and 12G-SDI), DisplayPort, DVI-D and HDMI 2.0 inputs; BNC (12G-SDI), DVI-D and DisplayPort outputs for daisy-chaining
• Stable, lockable HDMI connector mechanism to secure cable connections
• Fully flat front with protective laminated glass (hardness 9H) for easy cleaning; front: IP45 protection, whole monitor: IP32
• Lightweight for its class — approx. 25 kg — and VESA-compatible mounting
• 180° rotation and mirroring of images to match camera orientation
• Cable cover included for safety and hygiene

Other product notes

• Display colors: up to 10-bit (SDI) — 1.07 billion colors (maximum); 8-bit: 16.77 million colors
• Viewing angles: 178° horizontal / 178° vertical (typical)
• Contrast ratio: 1100:1 (typical)
• Response time: 8 ms (gray-to-gray, typical)
• Supports stable 4K@60fps transmission over a single cable (DisplayPort / HDMI 2.0 / 12G-SDI)

Technical specifications

• Model: CuratOR EX4942
• Panel type: IPS with protective laminated glass
• Backlight: LED
• Size: 124.5 cm / 49"
• Native resolution: 3840 x 2160 (16:9)
• Viewable image size (H x V): 1073.8 x 604 mm
• Pixel pitch (H x V): 0.279 mm x 0.279 mm
• Display colors: 10-bit (SDI) up to 1.07 billion colors; 8-bit 16.77 million colors
• Brightness (typical): 700 cd/m²
• Contrast ratio (typical): 1100:1
• Response time (typical): 8 ms (gray-to-gray)
• Color gamut: BT.2020 emulation (wide gamut)
• Input terminals: BNC (3G-SDI), BNC (12G-SDI), DVI-D, DisplayPort, HDMI 2.0
• Output terminals: BNC (12G-SDI), DVI-D, DisplayPort
• Simultaneous display: Picture-by-Picture (2 PbyP), Picture-in-Picture (PinP)
• OSD languages: English, German, French, Spanish, Italian, Swedish, Japanese, Simplified Chinese, Traditional Chinese, Russian, Portuguese
• Communication connector: RS-232C
• Auto Input Detection, gamma switching, color temperature switching
• Degree of protection: IP45 (front), IP32 (rear)
• Protective glass: Hardness 9H, laminated glass
• Net weight: approx. 25 kg
• Hole spacing (VESA): 400 x 200 mm, M8, depth 11 - 16 mm
• Power requirements: 100 - 240 V, 50 / 60 Hz
• Maximum power consumption: 160 W
• Power output: DC 5V, 2A
• Supplied accessories (may vary by country): cable cover, monitor attachment screws x4, cable tie x2, Utility Disk (Instructions for Use, Installation Manual)
• Optional accessories: Wall mount FWM6300
• Certifications & standards (selection): CE / UKCA (Medical Device), ANSI/AAMI ES60601-1, CAN/CSA-C22.2 No. 60601-1, IEC/EN 60601-1, VCCI-B, FCC-B, RCM, RoHS, WEEE
