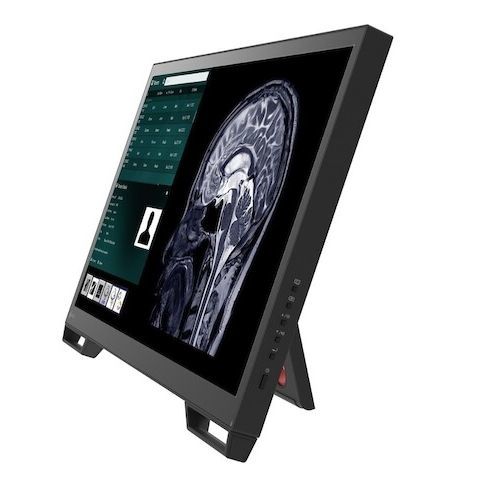

Medical display CuratOR® LX2420-T

ORmedical imaging1920 x 1080

Overview
23.8-inch (60.5 cm) surgical touchscreen monitor for interventional and operating room use. High-brightness IPS panel with DICOM® Part 14 factory grayscale calibration, flicker-free operation and projected capacitive 10-finger multi-touch with palm rejection. Available as LX2420-T (without stand) or LX2420-ST (with tiltable/reclining stand).

Key features

• High brightness (typical 600 cd/m²) for use in bright rooms
• Supports multiple video input resolutions; can display inputs at actual size, enlarged or full-screen
• Projected capacitive 10-finger multi-touch with palm rejection and glove operation
• Digital and analog video inputs (DisplayPort and DVI-I) for flexible connectivity
• DICOM® Part 14 factory grayscale calibration and five practice-based presets
• Internal backlight sensor for brightness stabilization and rapid startup stabilization
• Durable 7H protective glass and minimum 10 million touch life
• VESA 100 x 100 mm mounting

Product features (details)
The LX2420-T uses an IPS panel to provide high contrast and wide viewing angles (178°/178°). The display remains flicker-free at low refresh rates to reduce eye strain. The projected capacitive touch interface detects up to 10 simultaneous touches, supports glove use and includes palm rejection. The touchscreen surface features anti-glare (AG80) and anti-fingerprint coating suitable for clinical environments.

Inputs & signal handling
The monitor accepts DisplayPort and DVI-I (digital and analog RGBHV) inputs. It supports digital and analog scanning frequencies, separate sync, composite sync and SoG. The unit can auto-detect and display connected analog video signals and offers OSD adjustments when required.

Calibration & image quality
Each unit is factory calibrated to DICOM® Part 14 for consistent grayscale reproduction. Five default presets provide practice-based settings that meet diagnostic monitor specifications and relevant room-class standards.

Power & sensors
AC 100–240 V, 50/60 Hz input. Typical maximum power consumption 46 W. Power save modes: <2 W (Touch On); <1 W (Touch Off). Internal backlight and temperature sensors stabilize brightness. DC 5 V, 1 A power output (Hirose) provided.

Physical, durability & mounting
Protective glass hardness 7H. Net weight: approx. 6.0 kg (LX2420-T) / 6.2 kg (LX2420-ST). VESA hole spacing 100 x 100 mm, M4, depth 10 mm. Optional tiltable/reclining stand (LX2420-ST) enables near-flat positioning.

Accessories (supplied)
DVI cable, DisplayPort cable, USB cable (may vary by country).

Technical specifications

• Model variations: LX2420-T (without stand); LX2420-ST (with tiltable stand, black)
• Panel type: IPS
• Backlight: LED
• Size: 23.8" (60.5 cm) viewable diagonal
• Native resolution: 1920 x 1080 (16:9)
• Viewable image size (H x V): 527 x 296.5 mm
• Pixel pitch (H x V): 0.275 x 0.275 mm
• Display colors: 8-bit (16.77 million colors)
• Viewing angles (typical): 178° / 178°
• Brightness (typical): 600 cd/m²
• Contrast ratio (typical): 1000:1
• Response time (typical): 14 ms (gray-to-gray)
• Input terminals: DisplayPort, DVI-I (digital and analog RGBHV)
• Digital scanning frequency (H / V): 30 - 100 kHz / 50 - 85 Hz
• Analog scanning frequency (H / V): 30 - 100 kHz / 50 - 85 Hz
• Sync formats: Separate, Composite Sync and SoG
• USB upstream: USB 2.0 Type-B
• USB downstream: USB 2.0 Type-A
• Touch panel type: Projected Capacitive
• Maximum touch points: 10
• Surface treatment: Anti-glare (AG80) and anti-fingerprint coating
• Protective glass hardness: 7H
• Minimum touch life: 10 million touches
• Power requirements: AC 100 - 240 V, 50 / 60 Hz
• Maximum power consumption: 46 W
• Power save mode: <2 W (Touch On); <1 W (Touch Off)
• Power management: Digital: DVI DMPM; Analog: VESA DPMS
• Power output: DC 5 V, 1 A (Hirose)
• Sensors: Internal backlight and temperature sensor
• OSD languages: English, German
• Degree of protection: IP20
• Net weight: 6.0 kg (LX2420-T) / 6.2 kg (LX2420-ST)
• Hole spacing (VESA standard): 100 x 100 mm, M4, depth 10 mm
• Display presets: Five factory presets compliant with DICOM Part 14 and room-class standards
• Certifications & standards: CE / UKCA (Medical Device), IEC/EN60601-1, CSA-C22.2 No. 60601-1:14 + A2:22 / AAMI ES60601-1:2005 (R)2012, + A2:2021, EN60601-1-2 Class B, FCC-B, RoHS, China RoHS, WEEE, CCC, BIS
