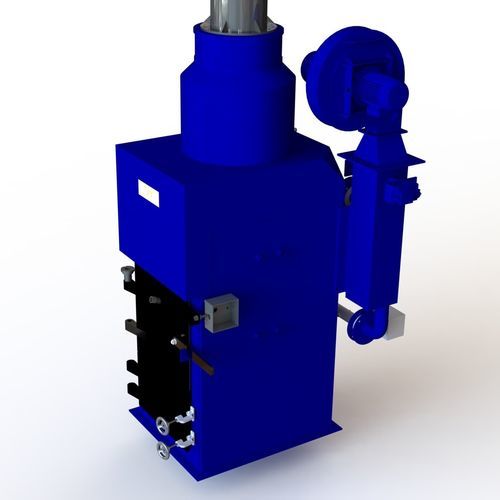

Cremation incinerator Minimaster

for hospitalsfor medical wasteclinical waste

Overview
The Minimaster is a compact, packaged incinerator designed for the safe disposal of clinical, pathological and confidential waste, including hospital materials, veterinary specimens and sensitive documents. Typical throughput is up to 25 kg per hour depending on waste type and properties. The unit features pre-wired packaged construction with integral burners and a high-grade composite lining. A venturi panel is incorporated to minimise fly-ash and dust emissions. Additional design elements include double doors for continuous loading, full ash access, low utility consumption, an electromagnetic safety door lock and a manometer natural draught indicator.

Key features

• Capacity: up to 25 kg per hour (dependent on waste type and properties)
• Pre-wired packaged design for simplified installation and low maintenance
• Integral burners and high-grade composite lining
• Venturi panel to minimise fly-ash and dust emissions
• Double doors enabling continuous loading
• Full ash access for easy removal and maintenance
• Low utility consumption for cost-efficient operation
• Electromagnetic safety door lock
• Manometer natural draught indicator
• Designed for efficiency, safety and regulatory compliance

Product specifications (dimensional table)
Height: 310 cm
Width: 190 cm
Depth: 200 cm

Electrical characteristics
Combustion air fan: 2000 m³/h at 20°C, 7.5 kW
Ejector air fan: 2500 m³/h at 20°C, 7.5 kW
Control system: 1.5 kW
Electrical supply: 1 x 16A / 230V / 1Ph+N+PE / 50 Hz

Notes
Designed for clinical, pathological or confidential waste streams; robust construction for low maintenance and regulatory compliance.
