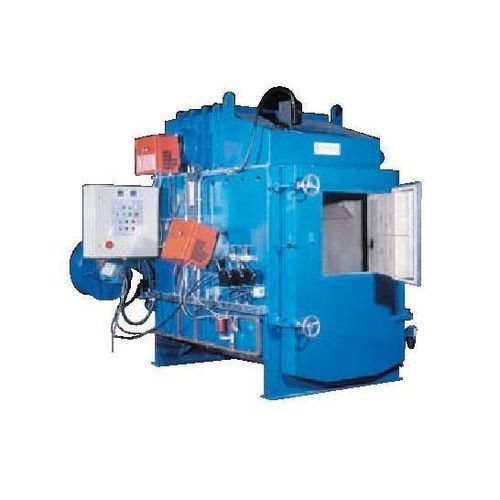

Cremation incinerator Model 3

heatingfor hospitalsclinical waste

Product overview
The Model 3 is an incinerator for safe disposal of clinical, pathological and confidential waste including hospital materials, veterinary specimens and sensitive documents. Available in two capacities (Model 3: 135 kg/h; Model 3b: 180 kg/h), the unit includes primary and secondary combustion chambers with integral burners, an anchored high‑grade composite lining and a venturi panel to reduce fly‑ash and dust emissions. The system features a steel chimney, double doors for continuous loading and full ash access, low utility consumption, an electromagnetic safety door lock and a manometer natural draught indicator.

Key features

• Two versions: Model 3 – 135 kg/h; Model 3b – 180 kg/h
• Designed for clinical, pathological and confidential waste (hospital materials, veterinary specimens, sensitive documents)
• Primary and secondary combustion chambers with integral burners
• Anchored high‑grade composite lining and venturi panel to minimise fly‑ash and dust emissions
• Steel chimney; double doors for continuous loading and full ash access
• Low utility consumption; electromagnetic safety door lock; manometer (natural draught indicator)

Technical specifications

• Capacity: Model 3 – 135 kg/hour; Model 3b – 180 kg/hour
• Application: Clinical, pathological and confidential waste
• Combustion chambers: Primary and secondary chambers with integral burners
• Lining: Anchored high‑grade composite lining
• Emissions control: Venturi panel to minimise fly‑ash and dust
• Chimney: Steel chimney
• Loading: Double doors for continuous loading and full ash access
• Safety: Electromagnetic safety door lock; manometer (natural draught indicator)
• Dimensions: Height 1000 cm; Width 400 cm; Depth 200 cm
• Combustion air fan: 2000 m³/h at 20°C, 7.5 kW
• Ejector air fan: 2500 m³/h at 20°C, 7.5 kW
• Control system: 1.5 kW
• Electrical supply: as specified
• Operation: Designed for low maintenance and regulatory compliance
