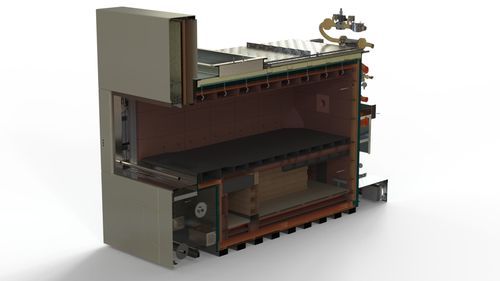

Cremation incinerator FTIV Hybrid

mortuarymulti-gashigh-capacity

Product overview
The FTIV Hybrid is engineered for modern crematoria requiring flexible fuel options and the capacity to process bariatric coffin sizes. It supports gas, electric or combined operation to maintain predictable cremation durations while mitigating exposure to fuel price volatility.

Key features

• Operates on gas, electricity, or a hybrid of both to mitigate fuel and energy cost fluctuations.
• Designed for bariatric coffin sizes (supports larger coffin dimensions and increased weights).
• Supplied with filtration outlet options: ready-made or configured for future upgrades.
• Available as site-built or factory-built installation to suit project constraints.
• Compatible with Natural gas / LPG / Diesel / biofuels and electric power.

Performance & operation

• Average cremation time: 75–90 minutes in gas/hybrid mode; 110–120 minutes in electric mode.
• Capable of continuous operation; suitable for 24-hour use without built-in limits.

Design & installation
Offered as either site-built or factory-built units. Filtration outlets can be supplied ready-made or prepared for future filtration system upgrades.

Technical specifications

• Height: 301 cm
• Width: 218 cm
• Depth: 409 cm
• Weight: 13,500 kg
• Opening for installation: 2.65 x 2.65 m
• Combustion air fan: 2000 m³/h at 20°C, 7.5 kW
• Ejector air fan: 2500 m³/h at 20°C, 7.5 kW
• Control system power: 1.5 kW
• Electrical supply: 1 x 32A / 400V / 3Ph+N+PE / 50 Hz (Cremator) | 1 x 160A / 400V / 3Ph+N+PE / 50 Hz (Electric elements)
