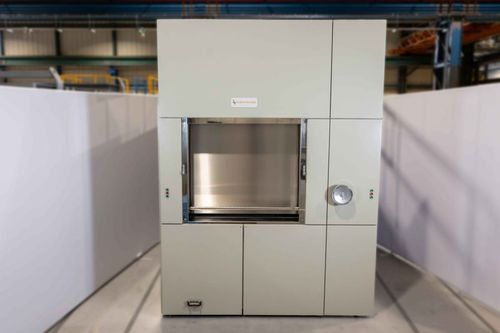

Cremation incinerator FTIII

cleaningmortuaryautomated

Overview
The FTIII gas cremator is engineered for reliable, long-term operation in funeral and mortuary facilities. Designed for bariatric coffins (231 cm), it offers automated control, integrated filtration and continuous emissions monitoring to support regulatory compliance and operational efficiency.

Key features

• Accepts bariatric coffins (designed for coffins up to 231 cm).
• Efficient gas-fired combustion chamber to reduce fuel consumption.
• Fully automated operation with integrated filter technology and continuous emissions monitoring.
• Proven deployment: over 1,000 units installed worldwide.
• Low maintenance design with typical operational life >20 years.
• Engineered to minimise total cost of ownership and meet regulatory requirements.

Specifications
Height: 295 cm
Width: 215 cm
Depth: 386 cm
Weight: 13,500 kg
Opening for installation: 2.65 x 2.65 m

Electrical characteristics

• Combustion air fan: 2000 m3/h at 20°C, 7.5 kW
• Ejector air fan: 2500 m3/h at 20°C, 7.5 kW
• Control system: 1.5 kW
• Electrical supply: 1 x 32A / 400V / 3Ph+N+PE / 50 Hz

Performance & operational notes

• Average cremation duration: approximately 75 minutes.
• Typical throughput: up to approx. 17 cremations/day (dependent on schedules and loads).
• Daily maintenance/downtime: approximately 1 hour/day for maintenance and cleaning if filtration is fitted.
• Refractory service: partial replacement typically ~5 years; full replacement typically ~10 years (based on ~1,000 cremations/year).
• Emissions: designed to meet strict international environmental standards with emissions-minimising technology.
• Gas consumption: site- and profile-specific; on-site calculations required for exact figures.
• Typical lead time: 20 weeks (subject to order and production schedule).

FAQ (selected)

• What is the maximum coffin length the FTIII can accommodate? — Designed to accommodate coffins up to 231 cm.
• What is the average duration of a cremation? — Approximately 75 minutes.
• How many cremations per day? — Approximately 17 cremations/day, depending on schedule and load.
• How often does the refractory require replacement? — Partial ~5 years; full ~10 years (based on ~1,000 cremations/year).
• How much daily downtime is needed? — Around 1 hour/day for maintenance/cleaning if filtration is fitted.

Technical specifications

• Model: FTIII
• Height: 295 cm
• Width: 215 cm
• Depth: 386 cm
• Weight: 13,500 kg
• Installation opening: 2.65 x 2.65 m
• Combustion air fan: 2000 m3/h at 20°C, 7.5 kW
• Ejector air fan: 2500 m3/h at 20°C, 7.5 kW
• Control system power: 1.5 kW
• Electrical supply: 1 x 32A / 400V / 3Ph+N+PE / 50 Hz
• Designed life: >20 years (typical)
• Throughput: ~17 cremations/day (site dependent)
