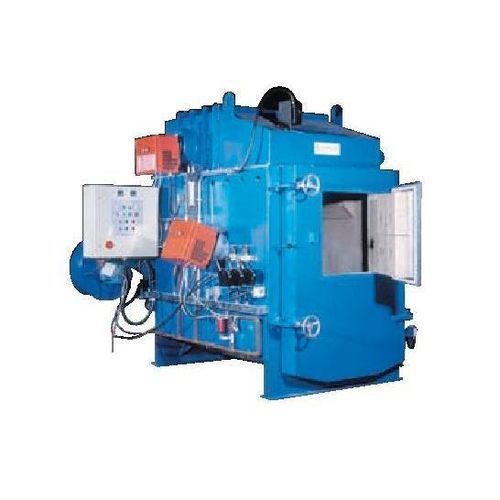

Hospital incinerator Model 2

for medical wastefor laboratory wasteclinical waste

Product overview
The Model 2 is an incinerator for onsite disposal of clinical, pathological and confidential waste, including hospital materials and veterinary specimens. Two capacity variants are available: Model 2 — up to 75 kg/h; Model 2b — up to 100 kg/h, depending on waste type and properties.

Key features

• Two capacities: Model 2 — 75 kg/h; Model 2b — 100 kg/h (dependent on waste type and properties)
• Primary and secondary combustion chambers with integral burners
• Anchored high‑grade composite lining
• Venturi panel to reduce fly‑ash and dust emissions
• Steel chimney
• Double doors for continuous loading and full ash access
• Low utility consumption
• Electromagnetic safety door lock
• Manometer (natural draught indicator)
• Low maintenance design and full regulatory compliance

Applications

• Clinical waste
• Pathological waste
• Destruction of confidential documents
• Veterinary specimens and hospital materials

Technical specifications

• Dimensions: Height 700 cm; Width 200 cm; Depth 350 cm
• Combustion air fan: 2000 m³/h at 20°C, 7.5 kW
• Ejector air fan: 2500 m³/h at 20°C, 7.5 kW
• Control system power: 1.5 kW
• Electrical supply: 1 x 16A / 400V / 3Ph+N+PE / 50 Hz
• Processing capacity: 75 kg/h (Model 2) or 100 kg/h (Model 2b), depending on waste type
