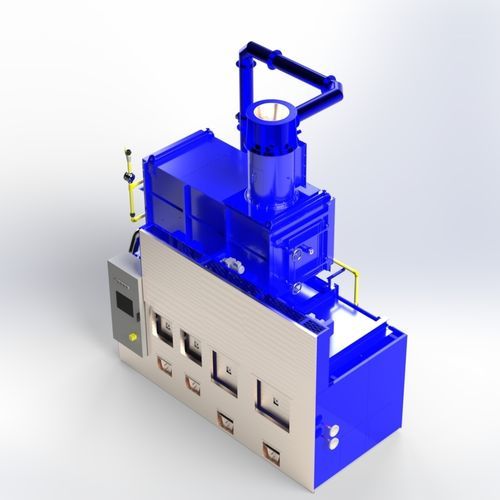

Cremation incinerator FTA1104D

flamefor animalsfor pets

Overview
The FTA1104D is a four-door, gas-supplied pet cremator composed of four independently operable chambers. It supports both individual (coffin-style) cremations and communal loading modes to match varying throughput requirements. The unit is designed for continuous industrial operation while ensuring controlled, respectful handling of remains.

Key features

• Four independent chambers with separate controls
• Individual chamber capacities: 50 kg/h, 30 kg/h, 15 kg/h and 15 kg/h
• Combined indicative throughput: 110 kg/h
• Gas-supplied combustion system
• Configurable for individual (coffin-style) or communal loading
• Automatic control system for consistent operation with low intervention
• Compatible with FT ancillary equipment and energy recovery solutions

Applications

• Individual and communal pet cremation operations
• Veterinary clinics, pet crematoria, animal care facilities requiring flexible throughput

Additional notes

• Flexible installation and operation modes to adapt to site throughput needs
• Suitable for continuous 24-hour operation (per product FAQ)

Technical specifications

• Product model: FTA1104D
• Description: Four-door, individual-chamber pet cremator, gas supplied
• Combined chamber throughput (indicative): 110 kg/h (sum of chamber capacities)
• Individual chamber capacities: 50 kg/h, 30 kg/h, 15 kg/h, 15 kg/h
• Height: 400 cm
• Width: 356 cm
• Depth: 485 cm
• Weight: 26,000 kg
• Opening for installation (H x W): 4.00 m (h) x 3.00 m (w)
• Combustion air fan: 3000 m3/h at 20°C, 11 kW
• Ejector air fan: 4000 m3/h at 20°C, 11 kW
• Control system power: 4 kW
• Electrical supply: 1 x 80A / 400V / 3Ph+N+PE / 50 Hz
• Operation: suitable for continuous 24-hour operation
