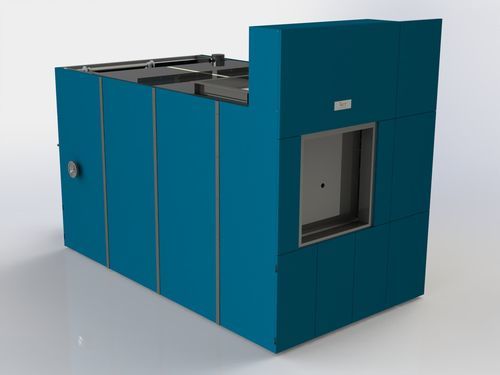

Cremation incinerator FTA125

for animalsfor large animalsfor pets

Product overview

• The FTA125 is a gas-supplied cremator designed for efficient and dignified cremation of domestic pets and larger animals.
• Nominal throughput: up to 125 kg load per hour (product name given as FTA125).
• Two operating modes: Individual Mode (coffin-style loading to enable ashes to be returned to clients) and Communal Loading Mode (higher throughput while maintaining care and efficiency).
• Primary chamber internal dimensions: 900 mm (width) x 900 mm (height) x 2350 mm (length) — allowances needed for the charging apparatus used.

Key features

• Gas supplied cremator suitable for larger domestic pets.
• Supports both individual and communal loading methods for operational flexibility.
• Designed for care and efficiency during the cremation process.
• Available as part of a product family with ancillary options and energy-recovery/abatement modules.

Operational notes

• Daily operating limits: up to 24 hours per day continuous operation (site FAQ).
• Service & maintenance: service packages and bespoke options available; contact manufacturer for personalised Total Cost of Ownership and quotes.

Electrical characteristics (table)
Combustion air fan: 2000 m3/h at 20°C, 5.5 kW
Ejector air fan: 2500 m3/h at 20°C, 7.5 kW
Control system: 1.5 kW
Electrical supply: 1 x 32A / 400V / 3Ph+N+PE / 50 Hz

Additional product description and positioning

• Market positioning: a flexible pet cremation solution intended for veterinary clinics, pet crematoriums and similar animal-care organisations.
• Installation: required installation opening 2.75 m (h) x 2.50 m (w).

caractéristiques / spécifications techniques

• Model / commercial name: FTA125
• Primary chamber internal dimensions: 900 mm (W) x 900 mm (H) x 2350 mm (L)
• Nominal throughput: 125 kg load per hour
• Fuel type: Gas supplied cremator
• Operating modes: Individual Mode (coffin-style, returnable ashes) and Communal Loading Mode
• Physical overall dimensions (page specification): Height: 2950 cm; Width: 2200 cm; Depth: 3900 cm
• Weight: 14000 kg
• Opening for installation: 2.75 m (h) x 2.50 m (w)
• Combustion air fan: 2000 m3/h at 20°C, 5.5 kW
• Ejector air fan: 2500 m3/h at 20°C, 7.5 kW
• Control system power: 1.5 kW
• Electrical supply requirement: 1 x 32A / 400V / 3Ph+N+PE / 50 Hz
• Continuous operation: up to 24 hours/day (per site FAQ)
