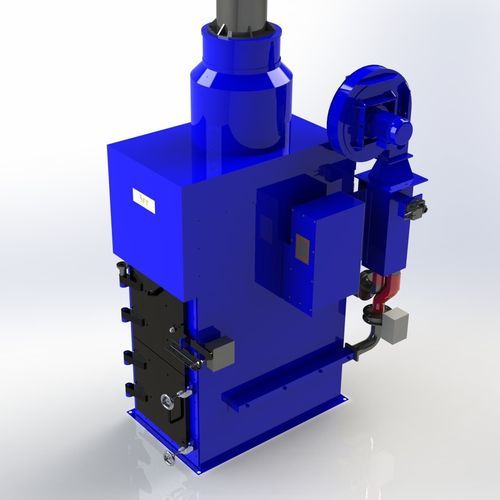

Hospital incinerator Maximaster

for healthcare facilitiesfor animalsfor medical waste

Overview
The Maximaster is a medium-scale incinerator designed for the safe, compliant disposal of clinical, pathological and confidential waste in hospitals, clinics and veterinary facilities. It delivers controlled throughput with low on-site utilities and simplified maintenance.

Product details
The Maximaster processes up to 45 kg/h (dependent on waste type and properties). The primary combustion chamber includes integral burners and a high-grade composite lining. A venturi panel and filtration-minded design reduce fly-ash and dust emissions. The unit incorporates a steel chimney, double loading/ash-access doors for continuous operation, an electromagnetic safety door lock and a manometer (natural draught indicator). Electrical and control systems are sized for typical site supplies.

Key features

• Capacity: up to 45 kg/h (depending on waste type and properties)
• Primary chamber with integral burners
• High-grade composite lining
• Venturi panel to minimise fly-ash and dust emissions
• Steel chimney
• Double doors for continuous loading and full ash access
• Low utility consumption
• Electromagnetic safety door lock
• Manometer (natural draught indicator)
• Low-maintenance construction

Applications

• Clinical waste
• Pathological waste
• Confidential waste (sensitive documents)
• Hospital materials and veterinary specimens

Benefits

• Engineered to support regulatory compliance and safe on-site disposal
• Continuous-operation design with easy ash access and low maintenance needs
• Reduced emissions and improved site cleanliness through venturi panel and combustion control

Technical specifications

• Height: 260 cm
• Width: 190 cm
• Depth: 1300 cm
• Processing capacity: up to 45 kg per hour (dependent on waste type/properties)
• Combustion air fan: 2000 m³/h at 20°C, 7.5 kW
• Ejector air fan: 2500 m³/h at 20°C, 7.5 kW
• Control system power: 1.5 kW
• Electrical supply: 1 x 16A / 230V / 1Ph+N+PE / 50 Hz
• Primary chamber with integral burners; high-grade composite lining; venturi panel; steel chimney; double loading/ash access doors; electromagnetic safety door lock; manometer (natural draught indicator)
