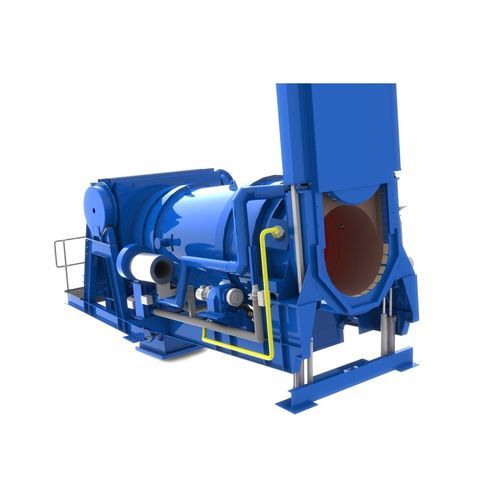

Cremation incinerator FTA250R

for animalsfor large animalsfor pets

Product Overview
The FTA250R is a gas-supplied rotary cremator designed for efficient, even cremation of animals ranging from small pets to larger livestock and equine. It processes up to 250 kg per hour and uses a rotating chamber to ensure uniform exposure and throughput. Filtration of exhaust emissions is required for compliant and safe operation. The unit is engineered to support high-capacity continuous use and varied operational workflows.

Key Points

• Gas-supplied rotary cremator
• Capacity: up to 250 kg per hour
• Suitable for pets, livestock and equine animals
• Rotary chamber for even cremation and efficient throughput
• Filtration required for safe and compliant operation
• Designed for high-capacity, continuous operation

Additional notes

• Operator guidance: product literature indicates continuous 24-hour design capability; site FAQ references operation up to 20 hours per day without restriction.

Specifications (table)
Height: 5500 cm
Width: 8000 cm
Depth: 12000 cm
Weight: 40000 kg
Opening for installation: 4.00 m (h) x 4.00 m (w)

Electrical Characteristics
Combustion air fan: 3000 m3/h at 20°C, 11 kW
Ejector air fan: 4000 m3/h at 20°C, 11 kW
Control system: 4 kW
Electrical supply: 1 x 150A / 400V / 3Ph+N+PE / 50 Hz

Technical specifications

• Model: FTA250R
• Fuel: Gas-supplied cremator
• Throughput: up to 250 kg per hour
• Application: animals & pets, livestock, equine
• Design: rotary chamber for even cremation
• Filtration: required for safe operation (emissions filtering)
• Continuous operation capability: designed for high-capacity, 24-hour operation (site FAQ references operation up to 20 hours/day)
• Dimensions (as listed): Height 5500 cm; Width 8000 cm; Depth 12000 cm
• Weight: 40000 kg
• Installation opening: 4.00 m (h) x 4.00 m (w)
• Combustion air fan: 3000 m3/h @ 20°C (11 kW)
• Ejector air fan: 4000 m3/h @ 20°C (11 kW)
• Control system power: 4 kW
• Electrical supply requirement: 1 x 150A / 400V / 3Ph + N + PE / 50 Hz
