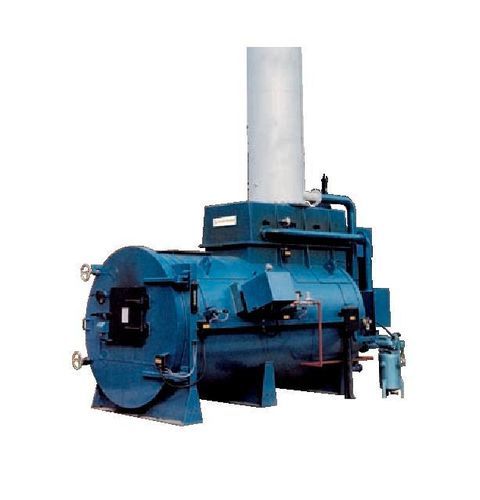

Hospital incinerator Model 4

for healthcare facilitiesfor medical wasteclinical waste

Product overview
The Model 4 is an incinerator designed for the safe and controlled disposal of clinical, pathological and confidential waste including hospital materials, veterinary specimens and sensitive documents. The unit features primary and secondary combustion chambers with integral burners, anchored composite lining and a Venturi panel to minimise fly-ash and dust emissions. Additional components include a steel chimney, double doors for continuous loading and full ash access, low utility consumption, an electromagnetic safety door lock and a manometer natural draught indicator.

Versions / Capacity

• Model 4 – processes up to 220 kg per hour (capacity depends on waste type and properties).
• Model 4b – processes up to 270 kg per hour (capacity depends on waste type and properties).

Key features

• Primary and secondary combustion chambers with integral burners.
• Anchored composite lining.
• Venturi panel to reduce fly-ash and dust emissions.
• Steel chimney for exhaust discharge.
• Double doors for continuous loading and full ash access.
• Low utility consumption design.
• Electromagnetic safety door lock.
• Manometer natural draught indicator.
• Suitable for disposal of clinical, pathological and confidential waste, veterinary specimens and sensitive documents.

Dimensions (table)
Height: 450 cm
Width: 700 cm
Depth: 450 cm

Electrical characteristics (table)
Combustion air fan: 2000 m³/h at 20°C, 7.5 kW
Ejector air fan: 2500 m³/h at 20°C, 7.5 kW
Control system: 1.5 kW
Electrical supply: 1 x 32A / 400V / 3Ph+N+PE / 50 Hz

Technical specifications

• Two available capacities: 220 kg/h (Model 4) and 270 kg/h (Model 4b) depending on waste type and properties.
• Primary and secondary combustion chambers with integral burners for controlled combustion.
• Anchored composite lining for thermal performance and service life.
• Venturi panel to minimise fly-ash and dust emissions.
• Steel chimney for exhaust discharge.
• Double doors enabling continuous loading and full ash access.
• Electromagnetic safety door lock for operator protection.
• Manometer natural draught indicator for monitoring draft conditions.
• Low utility consumption design.
• Combustion air fan: 2000 m³/h at 20°C, 7.5 kW.
• Ejector air fan: 2500 m³/h at 20°C, 7.5 kW.
• Control system power: 1.5 kW.
• Electrical supply requirement: 1 x 32A / 400V / 3Ph+N+PE / 50 Hz.
