Cremation incinerator FTIV Ready

mortuarymulti-gaslarge

Overview

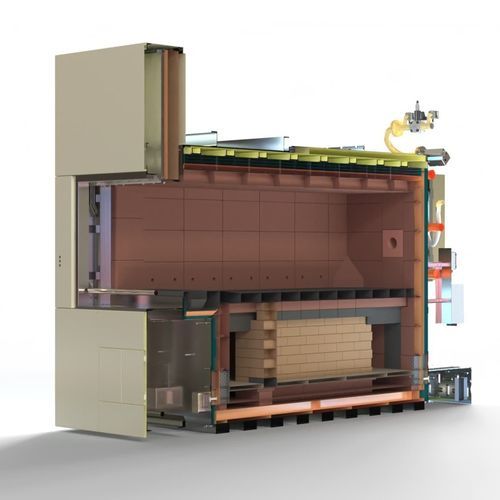

The FTIV Ready is a bariatric coffin-sized cremator engineered for operational flexibility, long-term adaptability and efficient multi-fuel use. The unit accepts a wide range of fuels and can be upgraded with electric elements to enable future hybrid operation. It is supplied with ready-made filtration outlets and can be delivered factory-built or assembled on site. Typical cremation times are 75–90 minutes in gas or hybrid mode and 110–120 minutes in future electric mode.

Key features

• Bariatric coffin-sized chamber to accommodate larger coffins.
• Operates on multiple fuels with future hybrid capability (natural gas, LPG, diesel, biofuels and electric power).
• Upgradeable to electric / hybrid operation when site power capacity allows.
• Supplied with preformed filtration outlets for emissions control integration.
• Available as factory-built or site-built for installation flexibility.
• Typical cremation times: 75–90 minutes (gas / hybrid), 110–120 minutes (electric mode).
• Designed for continuous operation (capable of 24 h/day use).

Installation & options

• Opening required for installation: 2.65 x 2.65 m.
• Configuration options: blocked, single end (SE) or double end (DE); factory-built or site-built delivery.
• Conversion to FTIV Hybrid requires addition of electrical elements, control panel and hearth modifications.

Operational notes & capacities

• Average cremation time: 75–90 minutes (gas / hybrid mode).
• Compatible fuels: natural gas, LPG, diesel, bio fuels and electric power.
• Operation profile: designed for continuous operation; can be run 24 hours/day when maintained per schedule.
• Accepted coffin dimensions: 2311 x 950 x 700 mm (maximum width 950 mm) and 2260 x 1050 x 700 mm.

Technical specifications

• External dimensions (H x W x D): 301 cm x 218 cm x 409 cm.
• Weight: 13,500 kg.
• Opening for installation: 2.65 x 2.65 m.
• Combustion air fan: 2000 m³/h at 20°C — 7.5 kW.
• Ejector air fan: 2500 m³/h at 20°C — 7.5 kW.
• Control system power: 1.5 kW.
• Electrical supply (for future electric elements): 1 x 32A / 400V / 3Ph+N+PE / 50 Hz | 1 x 160A / 400V / 3Ph+N+PE / 50 Hz.
• Average cremation times: 75–90 minutes (gas / hybrid), 110–120 minutes (electric mode).
• Accepted coffin sizes: 2311 x 950 x 700 mm (max width 950 mm) and 2260 x 1050 x 700 mm.
• Accepted fuels: natural gas, LPG, diesel, bio fuels and electric power.
