Gynecological operating table FY-V02-D1

electricadjustable heightwith legrest

Overview

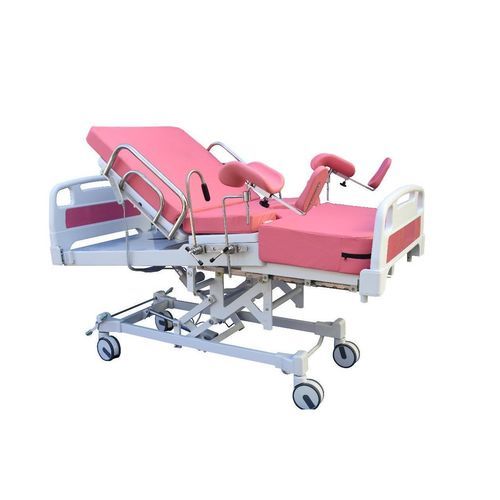

FY-V02-D1 electric delivery table designed for obstetric use, offering motorized height, back section and Trendelenburg adjustments for ergonomic positioning. ABS head and foot panels, PP table panel and stainless steel components facilitate cleaning and clinical hygiene.

Key features

• ABS head and foot panels: lightweight, removable, with protective bumpers.
• Two stainless steel rotatable side rails for patient protection and easy access.
• Pull-out auxiliary table for instruments and supplies.
• Motorized adjustments: height (electric), back section (electric), Trendelenburg (electric).
• Leg support: 80 mm high-density foam with artificial leather cover, ergonomically shaped.
• 125 mm castors with central brake for mobility and secure locking.
• Table panel in PP (polypropylene): durable and easy to disinfect.

Specifications

• Overall dimension: 2140 × 1120 mm
• Height adjustment (electric): 595–905 mm
• Back section adjustment (electric): 0–75°
• Trendelenburg adjustment (electric): ±9°
• Head and foot panels: ABS
• Side rails: 2 stainless steel, rotatable
• Auxiliary table: pull-out
• Controls: motorized height/back/Trendelenburg adjustments
• Leg support material: high-density foam + artificial leather, 80 mm thickness
• Castors: 125 mm with central brake
• Table panel material: PP (polypropylene)
