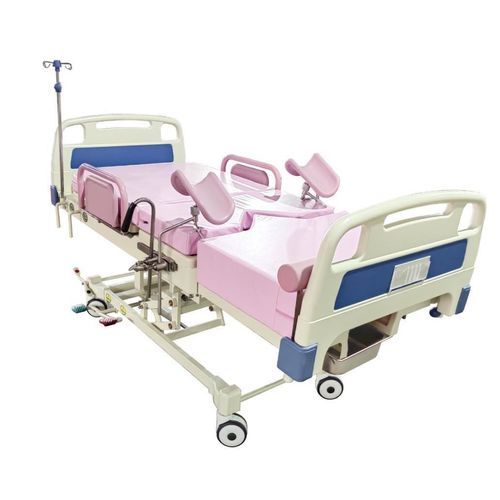

Gynecological operating table FY-V02-D
hydraulicadjustable heightwith legrest

Gynecological operating table - FY-V02-D - Jiangsu Fuyou Medical - hydraulic / adjustable height / with legrest
Gynecological operating table - FY-V02-D - Jiangsu Fuyou Medical - hydraulic / adjustable height / with legrest
Add to favorites
Compare this product
Go to the Jiangsu Fuyou Medical website for more information

Characteristics

Applications
gynecological
Operation
hydraulic
Features
adjustable height
Components
with legrest, with armrest, with headrest
Number of sections
3-section
Material
stainless steel
Total length

2,070 mm
(81.5 in)

Total width

1,050 mm
(41.3 in)

Max supported weight

250 kg
(551.2 lb)

Description

Features:
  • Hydraulic pump operated by foot pedals on both sides for height adjustment
  • Durable frame: cold-rolled steel plate and tube with electrostatic powder coating
  • Stainless steel side rails, rotatable design
  • Backrest adjustable by a gas spring
  • Trendelenburg and reverse Trendelenburg positions controlled by a gas spring
  • Bottom frame constructed from steel
  • Central braking system with four 150 mm castors
  • Leg-end section slides under the pelvic section; when extended it aligns flat with the body section
  • One removable stainless steel IV pole and two sockets for IV pole
  • Maximum loading capacity: 250 kg
  • Detachable slide-out tray for collection of fluids or placenta located under the mattress
  • Removable head and foot boards
  • Mattress: high-density sponge with PU leather cover for patient support
  • Removable grab handle and adjustable-height leg holder
  • Bed panels made of PP material for easy cleaning and durability


Specifications:
  • Model: FY-V02-D
  • Frame: cold-rolled steel plate and tube with electrostatic powder coating
  • Side rails: stainless steel, rotatable
  • Backrest adjustment: gas spring
  • Trendelenburg / reverse Trendelenburg: gas spring controlled
  • Height control: hydraulic pump operated by foot pedals (both sides)
  • Braking: centrally controlled braking system
  • Castors: four 150 mm castors
  • Leg section: slides under pelvic section; when extended aligns flat with body section
  • IV: one removable stainless steel IV pole and two sockets for IV pole
  • Load capacity: 250 kg
  • Accessories: detachable slide-out tray for fluids/placenta; removable head and foot boards; removable grab handle and adjustable leg holder
  • Mattress: high-density sponge with PU leather cover
  • Bed panel material: PP (easy to clean, durable)
  • Dimensions: 2070 x 1050 mm
  • Height adjustment range (hydraulic): 600–890 mm
  • Back section adjustment: 0–75°
  • Trendelenburg range: +12° / -5°
