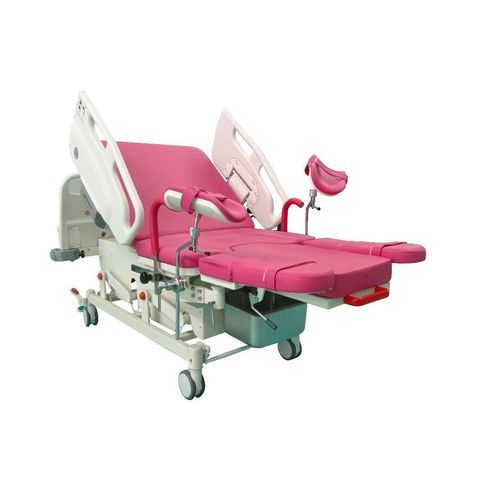

Delivery bed FY-II（6001）
electricTrendelenburgheight-adjustable

Delivery bed - FY-II（6001） - Jiangsu Fuyou Medical - electric / Trendelenburg / height-adjustable
Delivery bed - FY-II（6001） - Jiangsu Fuyou Medical - electric / Trendelenburg / height-adjustable
Add to favorites
Compare this product
Go to the Jiangsu Fuyou Medical website for more information

Characteristics

Applications
delivery
Operation
electric
Features
height-adjustable, Trendelenburg, reverse Trendelenburg, reclining, inclinable
Component
on casters
Number of sections
4-section
Height

Min.: 590 mm
(23.23 in)

Max.: 900 mm
(35.43 in)

Width

Min.: 900 mm
(35.4 in)

Max.: 940 mm
(37 in)

Length

Min.: 1,900 mm
(74.8 in)

Max.: 1,940 mm
(76.4 in)

Description

Product Overview
  • Overall length of table: 1920 ± 20 mm
  • Tabletop width: 920 ± 20 mm
  • Table height from floor: 600–890 ± 10 mm
  • Backrest adjustment (up): 65° ± 2°
  • Trendelenburg / Reverse Trendelenburg: 5° ± 2°


Construction and Materials
  • Bed frame material & finish: high-quality steel with plastic-sprayed finish for stain resistance and rust prevention, compliant with disinfection and purification requirements and impact resistant
  • Bed frame structure: closed structure to prevent dust and contamination; equipped with a central three-stage brake system for high stability and simple operation
  • Headboard & side rails: one-piece injection-molded high-strength ABS, easy-to-clean surfaces with a professional appearance


Adjustment System
  • Electric adjustment of bed positions for intuitive operation; driven by branded motors to ensure stable and reliable performance


Technical Specifications
  • Model designation: FY-II（6001）
  • Overall length: 1920 ± 20 mm
  • Tabletop width: 920 ± 20 mm
  • Adjustable height range: 600–890 ± 10 mm (from floor)
  • Backrest up angle: up to 65° ± 2°
  • Trendelenburg / Reverse Trendelenburg angle: 5° ± 2°
  • Bed frame: high-quality steel with plastic-sprayed finish (stain resistant, rust prevention)
  • Frame structure: closed structure with central three-stage brake system
  • Headboard & side rails: one-piece injection-molded high-strength ABS (easy to clean)
  • Adjustment: electric, driven by branded motors for stable, reliable operation
