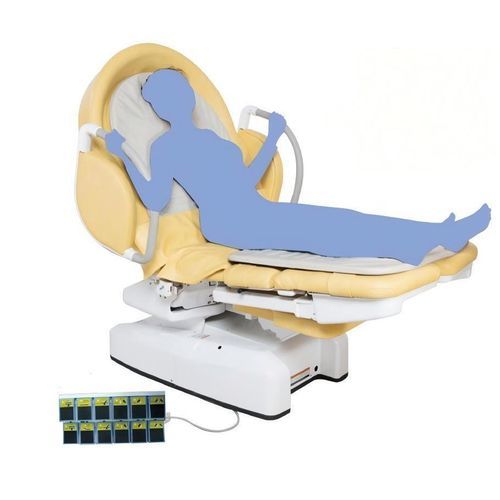

Urology operating table FY-3003

gynecologicalelectrictilting

Features

• The obstetrics and gynecology electric operating table supports delivery, gynecological surgery, examinations and emergency caesarean section. It is designed with selected materials and ergonomic details; intended for obstetrics, gynecology, urology and related departments.
• The tabletop is divided into a back section, a seat section and a leg section. The back section is adjustable up and down and the table can be tilted to provide optimal surgical positions for clinicians and comfortable positions for patients.
• Main structure: 45# steel; exterior: powder‑coated steel; base cover: high‑quality ABS with anti‑glare finish. Drive system: linear motor with low noise, stable performance and high positioning accuracy.

Specification
PROJECT: PARAMETERS
Bed size: 2058×1080×550+10 mm
Minimum height: 550±10 mm
Elevation range: 360±10 mm (electric)
Net weight: 305kg
Power supply: AC 230V 2.5A 50Hz
Backboard folding angle: Upward fold: 60°±2° (electric); Downward fold: 10°±2° (electric)
Seat board folding angle: Upward fold: 25°±2° (electric); Downward fold: 25°±2° (electric)
Foot support plate deflection angle: Right: 0°~33°±3° (electric); Left: 0°~33°±3° (electric)
Foot support plate folding angle: 0°~90°±2° (manual gas spring)
Leg plate folding angle: 75°±2° (manual)
Side armrest rotation angle: 180° (manual)
Pallet support plate translation stroke: 150±3 mm (manual)
Pallet support plate rotation angle: 90°±3° (manual)
Rotating pallet support plate translation stroke: 60+5 mm (manual)

Technical specifications

• Model: FY-3003 (Luxury)
• Bed size: 2058×1080×550+10 mm
• Minimum height: 550±10 mm
• Elevation range (electric): 360±10 mm
• Net weight: 305 kg
• Power supply: AC 230V 2.5A 50Hz
• Backboard folding angle (electric): Up 60°±2°, Down 10°±2°
• Seat board folding angle (electric): Up 25°±2°, Down 25°±2°
• Foot support plate deflection angle (electric): 0°–33°±3° (each side)
• Foot support plate folding angle (manual gas spring): 0°–90°±2°
• Leg plate folding angle (manual): 75°±2°
• Side armrest rotation: 180° (manual)
• Pallet support plate translation stroke (manual): 150±3 mm
• Pallet support plate rotation (manual): 90°±3°
• Rotating pallet support plate translation stroke (manual): 60+5 mm
• Construction materials: 45# steel main body, powder‑coated exterior, ABS base cover
• Drive system: linear motor (low noise, stable, high positioning accuracy)
