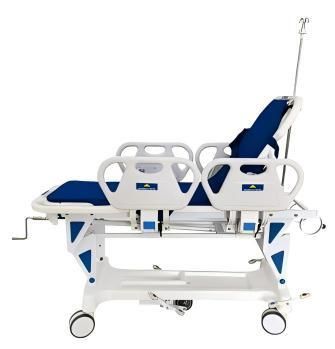

Emergency stretcher trolley FY-OCT103

patient transferrescuemanual

Description: This crank‑adjusted patient transport stretcher FY-OCT103 is designed for emergency rescue, intra-hospital transfers and routine clinical examinations. The welded high‑quality carbon steel frame receives rust removal and electrostatic resin powder coating for corrosion resistance. The one-piece blow-molded ABS bed top provides flame retardancy, corrosion resistance and high toughness and is equipped with four-corner push handles for safe handling by medical staff. The split bed top includes a gas-spring buffered backrest and a hand-crank height lift with dual overload protection.

Features:

• Welded carbon steel frame with rust removal and electrostatic resin powder coating for long-term anti-corrosion performance.
• Integral blow-molded ABS bed top with high flame retardancy and toughness; four-corner handles for easy maneuvering.
• Split-bed design with gas-spring controlled backrest adjustable 0–70°±5° (overall 0–75°) for patient positioning.
• Liftable ABS side rails composed of four small PP rail panels with gas-spring buffer to reduce impact and noise when lowering.
• Hand-crank height adjustment from 580–880 mm with dual-way overload protection and automatic lubrication for the crank mechanism.
• Emergency fittings: head-mounted oxygen cylinder holder (fits 5L), diagonal sockets at head and foot for stainless steel telescopic IV pole.
• Four 150 mm central-lock casters with international central brake system and built-in central guide wheel for single-person steering and stable braking.
• Integrated vacuum-formed ABS base cover providing storage for monitor and spare oxygen cylinder; built-in drain holes prevent water pooling.
• 2 cm Oxford cloth mattress and two anti-fall safety restraint straps to secure the patient during transport.
• Lightweight design, maximum load 250 kg; supplied in a full wooden export case.

Specifications:

• Overall dimensions: 1930 × 640 × 580/880 mm
• Total length: 1930 mm
• Bed top width: 640 mm
• Maximum load capacity: 250 kg
• Net weight: 76 kg
• Packed gross weight: 108 kg
• Main frame: high-quality carbon steel, welded construction
• Surface treatment: rust removal + electrostatic resin powder coating
• Bed top material: ABS one-piece blow molding — flame retardant, corrosion resistant, high toughness
• Bed top design: split-type with four-corner operation handles
• Side rails: lift-up ABS rails with 4 small PP rail panels; gas-spring lowering buffer
• Backrest adjustment: split backrest gas-spring control 0–70°±5°; overall backrest 0–75°
• Height adjustment: 580–880 mm, crank operation with dual-way overload protection and automatic lubrication
• Oxygen cylinder holder: head-mounted, fits 5L cylinder
• Infusion pole: diagonal sockets at head & foot for stainless steel telescopic IV pole
• Casters: four 150 mm central-locking casters; international central control brake system; central guide wheel
• Base cover: integrated vacuum-formed ABS with storage and drain holes
• Mattress: 2 cm Oxford cloth
• Safety accessories: 2 anti-fall restraint straps
• Export packaging: full wooden case; packing dimensions 1980 × 750 × 680 mm
