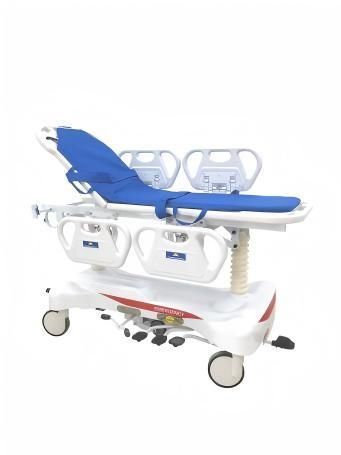

Emergency stretcher trolley FY-PC102-1

medical imagingtransporthydraulic

Description
This hydraulic patient transfer stretcher is a compact medical transport trolley for hospital wards, emergency and radiology departments. Silent gas springs control the backrest angle while hydraulic cylinders provide stable height adjustment; Trendelenburg and reverse Trendelenburg tilt are supported. The one-piece molded imported PE bed top and split independent side rails ensure a smooth surface and flexible lateral protection. Built on a welded carbon steel frame with electrostatic powder coating, and fitted with central-locking Ø200 mm casters and bilateral 5th-wheel steering, the trolley delivers stable braking, precise steering and a safe working load of 300 kg. Delivered in a wooden export case for long-distance transport.

Features

• Dual adjustment system: gas-spring backrest and hydraulic height lift for smooth, stable movement.
• One-piece imported PE bed top; two separate side rails per side with independent lifting control for flexible protection.
• Welded carbon steel main frame with rust removal and electrostatic powder coating for corrosion resistance.
• Four Ø200 mm casters with four-corner central one-step locking pedal for simple wheel locking.
• Reinforced integrated round-tube central brake linkage to increase overall structural strength.
• Bilateral independent 5th-wheel steering: selectable free or straight-line modes to control transport inertia and improve safety.
• Under-bed integrated oxygen cylinder tray, max load 10 kg, convenient for emergency oxygen placement.
• Waterproof medical mattress with zippered removable and washable outer cover for easy maintenance.
• Compact overall dimensions with SWL 300 kg; complete wooden export packaging with weight and size data.

Specifications

• Model: FY-PC102-1
• Overall dimensions: 1930 x 640 x 610/930 mm
• Bed platform length: 1900 mm
• Bed platform width: 640 mm
• Height adjustment range: 610–930 mm
• Backrest angle: 0–75°
• Tilt range (Trendelenburg/reverse): 0°–18°
• Safe working load: 300 kg
• Bed top: Imported one-piece molded PE
• Side rails: Two separate rails per side with independent control
• Main frame: Welded carbon steel; rust removal + electrostatic resin powder coating
• Casters: Four Ø200 mm with four-corner central one-step locking
• Steering: Bilateral independent 5th-wheel system (free/straight-line)
• Central brake linkage: Reinforced integrated round-tube structure
• Oxygen tray: Under-bed integrated tray, max load 10 kg
• Mattress: Waterproof with zippered removable & washable cover
• Packaging dimensions (wooden export case): 2010 x 830 x 720 mm
• Net weight: 95 kg
• Gross packed weight: 145 kg
