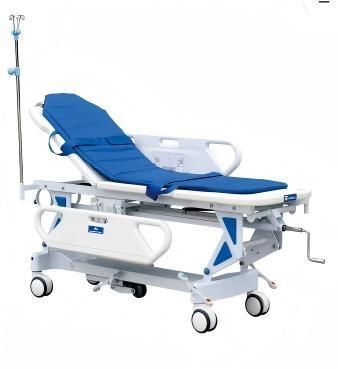

Transport stretcher trolley FY-OCT103

emergencypatient transfermanual

Description
This manual-crank, hydraulic-assisted patient transport stretcher is designed for emergency rescue, intra-hospital transfers and routine examinations. The welded high-quality carbon steel frame features rust removal and electrostatic resin powder coating. The one-piece blow-molded ABS bed top provides flame retardancy, corrosion resistance and high toughness. The split bed top with gas-spring-buffered backrest and crank-driven height adjustment enables multi-position posture changes and single-operator handling. Fitted ABS side rails with gas-spring buffering, head oxygen cylinder holder, dual-position IV pole sockets, central locking casters with guiding wheel, Oxford waterproof mattress and safety restraining belts support safe and stable patient transfers. Export-ready full wooden case packaging is provided.

Features

• Welded carbon steel frame with rust removal and electrostatic resin powder coating for corrosion resistance and extended service life.
• Integral blow-molded ABS bed top with flame retardancy, corrosion resistance and high toughness; four corner handles for handling and maneuvering.
• Split bed design with gas-spring-buffered backrest adjustable by single-hand operation (0–70°±5°), main backrest range 0–75°.
• ABS lift-up side rails with gas-spring buffering on descent to reduce impact noise and wear.
• Crank-operated height adjustment with dual-way overload protection and self-lubricating mechanism; height range 580–880 mm.
• Emergency accessories: head-mounted 5L oxygen cylinder holder and diagonal stainless-steel telescopic IV pole sockets at head and foot.
• Advanced central control braking system with four 150 mm central-locking casters plus a central guiding wheel for single-person steering and stable braking.
• 2 cm thick Oxford waterproof mattress and two safety straps to prevent patient sliding during transport.
• Lightweight construction with 250 kg maximum safe load; complete solid wooden case export packaging with clear dimensions and weights.

Specifications

• Model: FY-OCT103
• Overall dimensions: 1930 × 640 × 580/880 mm
• Total length: 1930 mm
• Bed top width: 640 mm
• Maximum load capacity: 250 kg
• Net weight (stretcher): 76 kg
• Packed gross weight: 108 kg
• Frame material: High-quality carbon steel, welded construction
• Surface treatment: Rust removal + electrostatic resin powder coating
• Bed top: One-piece blow-molded ABS engineering plastic
• Performance: High flame retardancy, corrosion resistance and high toughness
• Auxiliary design: Four-corner operation handles, split-type structure
• Backrest angle (main): 0–75°; split backrest: 0–70°±5° (gas spring control)
• Height adjustment: 580–880 mm (crank operation with dual-way overload protection & automatic lubrication)
• Side rails: ABS lift-up rails with gas-spring buffering
• Oxygen cylinder holder: Head mount for 5L cylinder
• IV poles: Diagonal sockets at head & foot, stainless steel telescopic IV pole
• Casters: Four 150 mm central-locking foot-brake casters
• Steering & brake: Central control brake system with built-in guiding wheel for single-person operation
• Mattress: 2 cm Oxford cloth waterproof mattress
• Safety accessories: Two anti-fall safety belts
• Export packaging: Full wooden case; packaging dimensions 1980 × 750 × 680 mm
