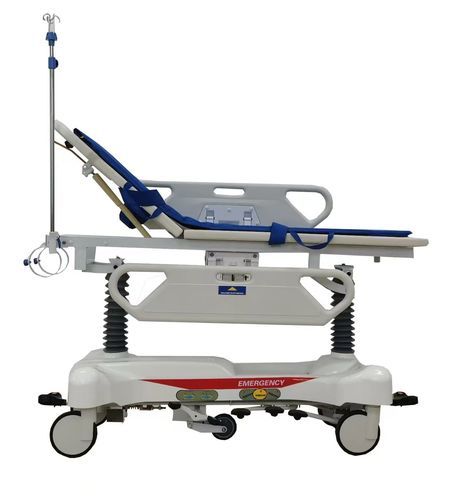

Transport stretcher trolley FY-PC102

hydraulicheight-adjustablewith adjustable backrest

Specifications
Overall dimensions: 1930×640×610/930 mm
Bed platform length: 1900 mm
Bed platform width: 640 mm
Height adjustment range: 610–930 mm
Backrest adjustment angle: 0–75°
Tilt adjustment range: 0°–18°
Safe Working Load: 300 kg

Features

• Backrest adjustment: controlled by silent gas springs for smooth motion.
• Height adjustment: driven by hydraulic cylinders for stable, precise lifting.
• Bed platform and side rails: one-piece blow-molded imported PP engineering plastic for easy cleaning and chemical resistance.
• Frame: high-strength steel construction suitable for clinical environments.
• Casters: four Ø200 mm swivel casters with central locking; one-step brake locks all four wheels simultaneously.
• Central brake linkage: integrated round-tube structure for increased strength.
• Independent 5th-wheel steering: control pedals on both sides; retractable for free movement, selectable straight-line mode to counteract inertia and maintain directional stability during transport.
• Integrated oxygen cylinder tray: under-bed tray with 10 kg capacity.
• Mattress: waterproof surface, removable cover with zipper for washing.

Packing
Wooden case packaging
Packaging dimensions: 2010×830×720 mm
Net weight: 95 kg
Gross weight: 145 kg

Technical specifications

• Overall dimensions: 1930×640×610/930 mm
• Bed platform length: 1900 mm
• Bed platform width: 640 mm
• Height adjustment range: 610–930 mm
• Backrest adjustment angle: 0–75°
• Tilt adjustment range: 0°–18°
• Safe Working Load: 300 kg
• Casters: Ø200 mm with central locking
• Oxygen cylinder tray capacity: 10 kg
• Net weight: 95 kg
• Gross weight: 145 kg
