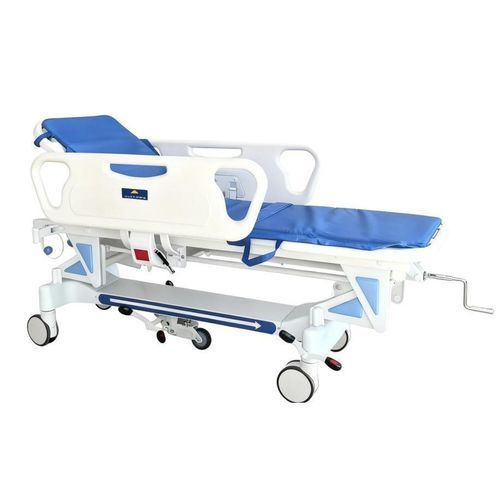

Patient transfer stretcher trolley FY-MJPD-1

electricheight-adjustablewith adjustable backrest

Overview
Mobile patient stretcher designed for patient transfers and integration with nursing beds or surgical tables. Manual height adjustment via hand crank; central control wheel and steering wheels provide directional control.

Key features

• Hand crank operation: turn clockwise to raise the stretcher body, counterclockwise to lower it
• Clearly marked directional arrows to guide the operator
• Central control wheel Ø150 mm equipped with steering wheels for precise directional control
• Damped lifting PP side rails retract beneath the bed panel when lowered to enable seamless integration
• Backrest adjustable from 0-75°; height adjustment range 540-840 mm (bed panel to floor)

Technical specifications

• External dimensions: 1930×640 mm
• Bed surface net dimensions: 1900×640 mm
• Height adjustment (bed panel to floor): 540-840 mm
• Backrest angle: 0-75°
• Net weight: 75 kg
• Gross weight: 105 kg
• Packaging dimensions: 1970×700×630 mm

Standard accessories

• 3 cm mattress
• I.V. pole
