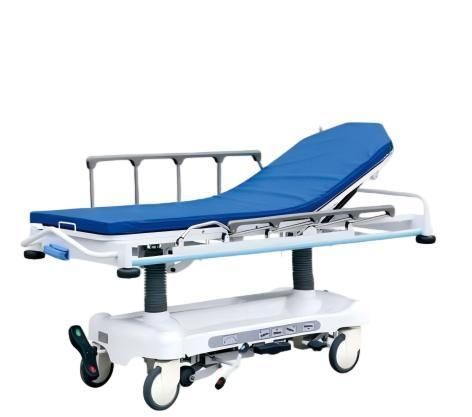

Medical imaging stretcher trolley FY-101 II

emergencytransportpatient transfer

Overview
The FY-101 II hydraulic patient stretcher is a dedicated transfer trolley designed for use in hospital emergency departments, wards and imaging units. It features a double-column hydraulic lifting system, foldable stainless steel side rails, a blue medical mattress and a detachable IV stand. The stretcher supports adjustable backrest, leg section elevation, height adjustment and Trendelenburg/reverse Trendelenburg tilt, enabling safe and adaptable patient positioning.

Key Features

• Double-column hydraulic control system for stable lifting
• Adjustable backrest and leg section for positioning
• Height adjustment range suitable for transfer and procedures
• Trendelenburg and reverse Trendelenburg tilt for clinical positioning
• Foldable stainless steel side rails for patient protection
• Silent medical casters with central brake for smooth movement and locking

Technical Specifications
Overall Dimension: 1885×800×630/960mm
Backrest Adjustment Angle: 75°±10°
Leg Section Adjustment Angle: 35°±5°
Height Adjustment Range: 400-700mm
Forward & Backward Tilt: 12°

Standard Accessories

• Foldable stainless steel side rails
• Blue medical mattress
• Detachable IV stand
• Silent casters with central brake

Applications

• Emergency department patient transfer
• Inpatient ward transfers
• Patient transport for imaging and examinations
