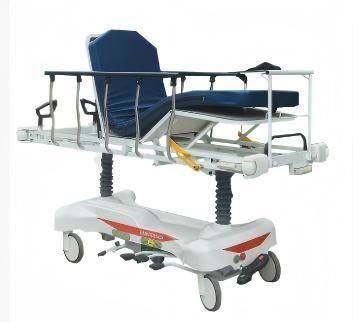

Transport stretcher trolley FY-PC101 III

emergencypatient transfermedical imaging

Overview
This hydraulic patient transfer stretcher is designed for hospital emergency rescue, ward-to-ward transport and full-body radiographic examination without patient relocation. It combines silent gas-spring backrest adjustment with hydraulic height lifting and supports multi-angle posture settings including backrest, knee rest and Trendelenburg/reverse Trendelenburg tilt. The stretcher features an X-ray translucent high-strength compact laminate bed platform, stainless-steel foldable side rails and an independent bilateral 5th-wheel steering system to ensure stable, safe patient transfers. It is delivered in a reinforced wooden export case for overseas shipping.

Key features

• Dual adjustment system: silent gas springs for backrest and hydraulic cylinders for stable height adjustment.
• X-ray translucent compact laminate bed platform for full-body radiography without moving the patient.
• Stainless-steel foldable side rails with zinc die-cast locking fittings for secure locking.
• Four Ø200 mm transport casters with full central one-step locking and four 70×80 mm anti-collision corner wheels.
• Reinforced integrated round-tube central brake linkage to increase structural strength.
• Bilateral independent 5th-wheel steering with 105 mm pedal ground clearance; selectable free-steering and straight-line transport modes.
• Under-bed oxygen cylinder tray (20 kg capacity) and reserved IV pole holder for emergency accessories.
• Waterproof medical mattress with zippered removable cover for easy cleaning and replacement.
• High-quality steel frame with a maximum safe working load of 320 kg.
• Standard export wooden case packaging with complete dimensions and weight for logistics.

Technical specifications

• Overall dimensions: 2120×870×620/930 mm
• Bed platform length: 1926 mm
• Bed platform width: 620 mm
• Bed platform thickness: 6 mm
• Mattress dimensions: 1840×600×80 mm
• Height adjustment range: 620–930 mm
• Backrest adjustment angle: 0–85°
• Knee rest adjustment angle: 0–40°
• Overall tilt (Trendelenburg/reverse): 0°–18°
• Safe working load (SWL): 320 kg
• Backrest control: silent gas spring
• Height drive: hydraulic cylinder
• Bed platform material: high-strength compact laminate, X-ray translucent
• Frame material: high-quality steel
• Side rails: stainless steel with zinc die-cast locking fittings (rail length 1240 mm, rail width 810 mm, height above bed surface when raised 430 mm)
• Casters: four Ø200 mm with full central locking; corner anti-collision wheels 70×80 mm
• 5th-wheel steering: dual-side control pedals, 105 mm pedal ground clearance; free-steering and straight-line modes
• Oxygen cylinder tray: under-bed integrated tray, max load 20 kg
• I.V. pole holder: pre-installed
• Mattress: waterproof surface, zippered removable & washable outer cover (1840×600×80 mm)
• Net weight: 132 kg; Empty wooden case weight: 55 kg; Packed weight: 187 kg
• Packaging dimensions (export wooden case): 2220×990×790 mm
