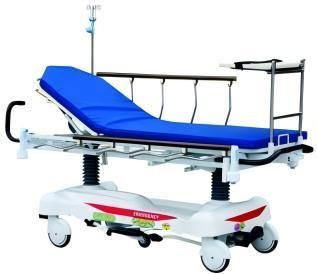

Transport stretcher trolley FY-PC101emergencymedical imagingfor surgery units
Add to favorites
Compare this product
Characteristics
- Applications
- transport, emergency, medical imaging, for surgery units, patient transfer
- Operation
- hydraulic
- Features
- reverse Trendelenburg, Trendelenburg, with adjustable backrest, height-adjustable
- Maximum load
Min.: 300 kg
(661.39 lb)Max.: 300 kg
(661.39 lb)- Length
Min.: 214 cm
(84 in)Max.: 214 cm
(84 in)- Width
Min.: 80 cm
(31 in)Max.: 80 cm
(31 in)- Height
Min.: 62 cm
(24.4 in)Max.: 93 cm
(36.6 in)
Description
Product
FY-PC101 hydraulic patient transport trolley designed for intra-hospital transfers and clinical positioning, featuring hydraulic height adjustment and multi-angle backrest/knee rest.
Key features
Technical specifications
Applications
FY-PC101 hydraulic patient transport trolley designed for intra-hospital transfers and clinical positioning, featuring hydraulic height adjustment and multi-angle backrest/knee rest.
Key features
- Hydraulic height adjustment for safe patient transfers
- Adjustable backrest (0–75°) and knee rest (0–40°)
- Tilt function (forward/backward) 0°–18° to adjust patient inclination
- Safe working load (SWL): 300 kg
Technical specifications
- Model: FY-PC101
- Overall dimensions: 2140 × 800 × 620/930 mm
- Bed board length: 1910 mm
- Bed board width: 620 mm
- Height adjustment range: 620–930 mm
- Backrest adjustment: 0–75°
- Knee rest adjustment: 0–40°
- Tilt angle (forward/backward): 0°–18°
- Safe working load (SWL): 300 kg
Applications
- Patient transfers within hospitals and clinics
- Emergency and perioperative transport
- Use in imaging or treatment rooms where height and position adjustments are required
