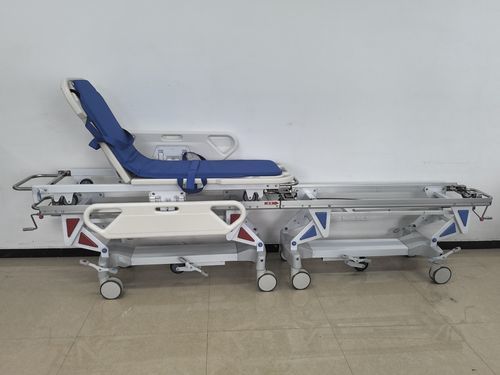

Convertible stretcher FY-OCT105

surgical emergencyon castersheight-adjustable

Product overview
Connecting stretcher FY-OCT105 for surgical and hospital use. Overall dimensions: L3650×W640×H640/970 mm. Designed to link two stretcher units into a continuous bed platform for operating rooms and procedural areas.

Technical specifications

• Overall dimensions: L3650×W640×H640/970 mm
• Main materials: carbon steel welded body; guide rails die-cast from A380.2 aluminum alloy; one-piece injection-molded imported ABS bed top and side rails
• Backrest mechanism: imported gas springs
• Pulleys and casters: four silent pulleys at bed base; casters Ø150 mm with TPU tread, nylon (PA6) core and precision bearings
• Locking & safety: automatic locking when sliding onto either stretcher; locking components made of 304 stainless steel
• Infusion pole: two-section adjustable, 304 stainless steel
• Brake system: central control brake system (both stretchers)

Key features

• Guide rails: die-cast A380.2 aluminum alloy for smoother, reliable sliding of the bed platform
• Body: high-quality carbon steel construction with rust removal and electrostatic resin powder coating
• Bed top & side rails: one-piece injection-molded imported ABS for easy cleaning
• Backrest: gas-spring support for controlled adjustment
• Silent pulleys: four quiet pulleys installed under the bed platform
• Height alignment: both stretchers are height-adjustable to the same level for seamless transfer
• Guide wheel device: integrated guide wheel for stable directional control during movement
• Casters & brake: brand Ø150 mm casters with central lock / total lock options and wear-resistant TPU tread

Performance & indications
Structure and performance meet international advanced standards for operating-room stretchers. Suitable for hospital operating rooms and procedural suites; designed to reduce cross-contamination risk and to facilitate safe patient transfer.

Packing & weights

• Main stretcher packing: 2090×790×780 mm
• Auxiliary stretcher packing: 1920×680×600 mm
• Net weight: 135 KG
• Gross weight: 180 KG
