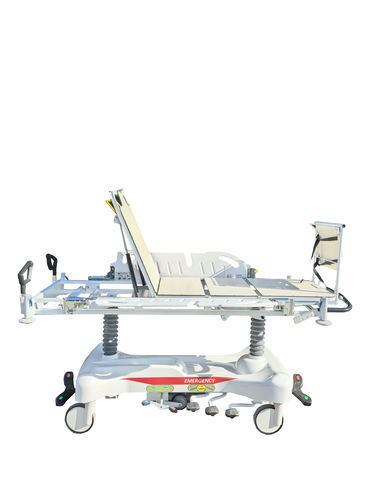

Transport stretcher trolley FY-PC106medical imaginghydraulicheight-adjustable
Add to favorites
Compare this product
Characteristics
- Applications
- transport, medical imaging
- Operation
- hydraulic
- Features
- height-adjustable, with adjustable backrest
- Number of sections
- not specified
- Accessories
- with side rails, with IV pole, with oxygen cylinder
- Other characteristics
- X-ray transparent, radiolucent, with brake system
- Maximum load
300 kg
(661.39 lb)- Length
216 cm
(85 in)- Width
87 cm
(34 in)- Height
Min.: 62 cm
(24.4 in)Max.: 93 cm
(36.6 in)- Wheel diameter
200 mm
(7.9 in)
Description
Specifications:
Features:
Packing:
Technical specifications:
- Overall dimensions: 2160 × 870 × 620/930 mm; total side-rail width: 760 mm
- Bed platform length: 1930 mm
- Bed platform width: 620 mm
- Height adjustment range: 620–930 mm
- Backrest adjustment angle: 0–75°
- Knee rest adjustment angle: 0–40°
- Tilt adjustment range: 0°–18°
- Safe working load: 300 kg
- Casters: Ø200 mm with central locking; one-step braking locks all four wheels
- 5th wheel steering pedal ground clearance: 105 mm
- Oxygen cylinder tray capacity: 10 kg
- Packing dimensions: 2310 × 990 × 860 mm; case weight: 55 kg; stretcher weight: 132 kg; total weight: 187 kg
Features:
- Backrest adjustment system: controlled by silent gas springs for smooth positioning
- Height adjustment system: driven by hydraulic cylinders for stable lift performance
- Bed platform: compact laminate with high strength and deformation resistance; X-ray translucent to facilitate imaging
- Frame: robust high‑quality steel construction
- Fully recessed PP rotating, side-folding side rails: fixable in horizontal position and fully retractable under the bed; angle indicators and safety locks on both sides to secure patient transfers
- Casters: four Ø200 mm wheels with central locking system and one-step braking for simultaneous wheel lock
- Central brake linkage: integrated round-tube structure for increased strength
- Independent 5th wheel steering system: dual-side control pedals — free movement when retracted; straight-line mode when engaged to improve directional stability during transport
- Integrated oxygen cylinder tray: under-bed tray with 10 kg load capacity
- I.V. pole holder: integrated holder for convenient storage of infusion stand
- Mattress: waterproof surface treatment, easy to clean; removable zippered cover for washing
Packing:
- Wooden case packaging
- Packaging dimensions: 2310 × 990 × 860 mm
- Case weight: 55 kg
- Hydraulic stretcher weight: 132 kg
- Total weight: 187 kg
Technical specifications:
- Overall dimensions: 2160 × 870 × 620/930 mm; side rails total width: 760 mm
- Bed platform length: 1930 mm; width: 620 mm
- Height adjustment: 620–930 mm
- Backrest: 0–75°; Knee rest: 0–40°
- Tilt: 0°–18°
- Safe working load: 300 kg
- Casters: Ø200 mm, central locking, one-step brake for all wheels
- 5th wheel steering: pedal-controlled, pedal ground clearance 105 mm
- Oxygen tray: 10 kg capacity
- Packing: 2310 × 990 × 860 mm; case 55 kg; stretcher 132 kg; total 187 kg
